Autoclave Engineers High Pressure Tubing
Autoclave Engineers High Pressure Tubing
SKU:PIN-10cfaf
Premium 316SS high pressure tubing for strength & corrosion resistance in critical applications. Available in various lengths. Max working pressure 40,000 psi.
Regular price
$127.99
Regular price
Sale price
$127.99
Unit price
per
Initiate Order
Autoclave Engineers High Pressure Tubing
$127.99
Quantity: 1
Claim Your Seller Account
Autoclave Engineers High Pressure Tubing
$127.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Autoclave Engineers offers high pressure tubing designed to match the performance standards of Autoclave valves and fittings. Made of austenitic, cold drawn 316SS stainless steel, this tubing ensures strength and corrosion resistance for high pressure applications. The tubing is available in random lengths between 20-27 feet, with close tolerance control over outside and inside diameters. With a maximum working pressure of 40,000 psi at various temperature ranges, this tubing undergoes rigorous quality inspections, including hydrostatic testing, to guarantee mechanical properties and flawlessness.
Product Specifications
Manufacturing Notes 0

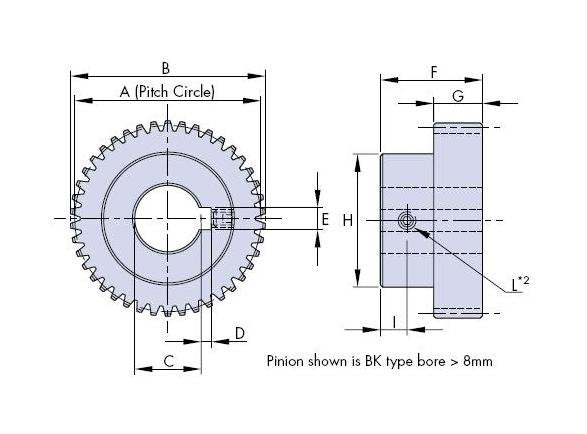

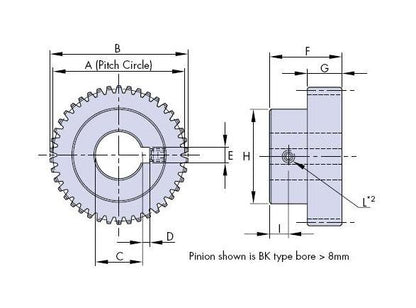

For Dimension D and E: Small "BK" type pinions with bores below 8 mm are supplied with set screw through to the bore but without keyway. It is usual practice to secure these pinions by means of a set screw onto a flat on the shaft or by using a taper pin. For Dimension L: Pinions are supplied with a flat point set screw DIN 913 (ISO 4026).For Material: ST = Steel, SS = Stainless Steel
Specifications Condition
Teeth hardened and ground
Specifications Dimension A
72 mm
Specifications Dimension B
75 mm
Specifications Dimension C
15 mm
Specifications Dimension D
2.3 mm
Specifications Dimension E
5 mm
Specifications Dimension F
25 mm
Specifications Dimension G
12 mm
Specifications Dimension H
30 mm
Specifications Dimension I
6.5 mm
Specifications Dimension L
M4
Specifications For Use With Ring Slides
R76
Specifications Iso 1328 Grade
6
Specifications Material
ST/SS
Specifications Module
1.5
Specifications Number Of Teeth
48
Specifications Weight
350 g
