Autoclave Engineers High Pressure Tubing - HP-160

Name: Autoclave Engineers High Pressure Tubing - HP-160
Brand: Bishop-Wisecarver
SKU: PIN-d2d844
Price: 250.0 USD
Availability: OutOfStock

SKU:PIN-d2d844

Discover top-tier Autoclave Engineers High Pressure Tubing for unmatched durability and performance in high-pressure applications.

$250.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience superior performance and durability with Autoclave Engineers' high pressure tubing. Crafted from austenitic stainless steel, this tubing ensures strength and corrosion resistance, meeting the stringent requirements of high-pressure applications. Available in five sizes and various materials including special options like Monel 400 and Inconel 600, this tubing undergoes meticulous inspection and testing procedures for quality assurance. With working pressures reaching up to 100,000 psi, our tubing is designed to excel even in extreme temperature conditions, making it ideal for a wide range of industrial applications.

Product Specifications

Manufacturing Notes 0

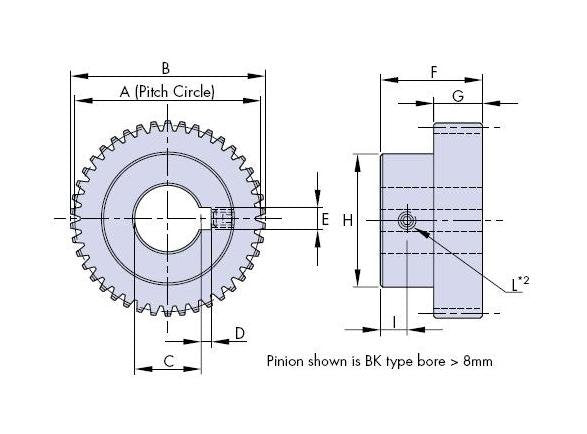

For Dimension D and E: Small "BK" type pinions with bores below 8 mm are supplied with set screw through to the bore but without keyway. It is usual practice to secure these pinions by means of a set screw onto a flat on the shaft or by using a taper pin. For Dimension L: Pinions are supplied with a flat point set screw DIN 913 (ISO 4026).For Material: ST = Steel, SS = Stainless Steel

Specifications Condition

Teeth unhardened and unground

Specifications Dimension A

19.6 mm

Specifications Dimension B

21 mm

Specifications Dimension C

5 mm

Specifications Dimension F

17 mm

Specifications Dimension G

9 mm

Specifications Dimension H

16 mm

Specifications Dimension I

4 mm

Specifications Dimension L

Specifications For Use With Curved Segments

REV, RIV

Specifications Iso 1328 Grade

Specifications Material

Specifications Module

0.7

Specifications Number Of Teeth

Specifications Weight

31 g

Autoclave Engineers High Pressure Tubing - HP-160
