Autoclave Engineers HP Dual-Disc Line Filters
Autoclave Engineers HP Dual-Disc Line Filters
SKU:INT-fe3964
High Pressure Dual-Disc Line Filters for industrial, aerospace & nuclear applications. Dual-disc design for precision filtration.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Autoclave Engineers HP Dual-Disc Line Filters
$289.99
Quantity: 1
Claim Your Seller Account
Autoclave Engineers HP Dual-Disc Line Filters
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autoclave Engineers High Pressure Dual-Disc Line Filters are essential for industrial, chemical, aerospace, and nuclear applications. Featuring a dual-disc design, these filters effectively trap large contaminants with precision. Constructed with 316 Stainless Steel body and cover, and 300 Series Stainless Steel filter elements, these filters offer durability and reliability. With a standard upstream micron size of 35 and downstream of 65, these filters ensure optimal performance. Easily replaceable filter elements and compatibility with optional materials make these filters versatile and efficient.
Product Specifications

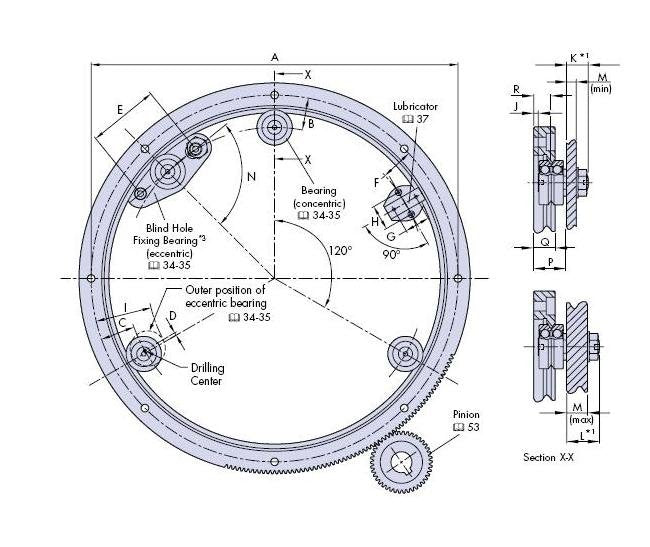

Drilling Positions Dimension B
23.0 mm
Drilling Positions Dimension C
24.9 mm
Drilling Positions Dimension D
1.9 mm
Drilling Positions Dimension E
50 mm
Drilling Positions Dimension F
22.5 mm
Drilling Positions Dimension G
16 mm
Drilling Positions Dimension H
18 mm
Manufacturing Notes 0
For 1 : Short or long stud lengths are available for each size of bearing 34-35. Choose according to the required mounting plate thickness.For 2 : Exact theoretical values have been given for `B`, `C` and `D`. Positional accuracy of dimension `B` will determine the axis of the ring. Positional accuracy for dimensions `C` and `D` are not normally critical. Holes for bearing studs should be reamed to tolerance F6 for a sliding fit.For 3 : The eccentric blind hole fixing bearing cannot be used with the RIS 182 ring slide as it clashes with the ring.
Specifications Dimension A
357 mm
Specifications Dimension I
40.2 mm
Specifications Dimension J
2.4 mm
Specifications Dimension K
9.8 mm
Specifications Dimension L
19 mm
Specifications Dimension M Max
13 mm
Specifications Dimension M Min
2.2 mm
Specifications Dimension N
84 mm
Specifications Dimension P
19 mm
Specifications Dimension Q
12.25 mm
Specifications Dimension R
10 mm
Specifications For Use With Bearing
J25
