High-pressure QS Medium Pressure Straight Couplings for secure and leak-free connections in 9.53mm tubing, rated at 15000 psi.

$42.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Autoclave Engineers QS Medium Pressure Straight Couplings are designed for high-pressure applications, featuring a QS375 connection type suitable for 9.53mm (3/8 inch) outside diameter tubing. With a pressure rating of 15000 psi (1034.20 bar), these couplings ensure secure and leak-free connections. The precision-engineered design includes a minimum opening of 0.250 inches (6.35 mm) and a sturdy construction for reliable performance. Enjoy easy installation and compatibility with Autoclave tubing for optimal fit and function.

Product Specifications

Features Features

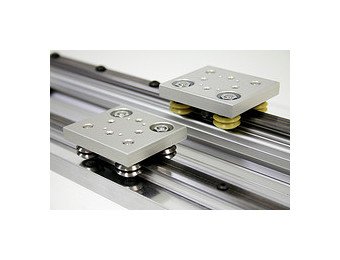

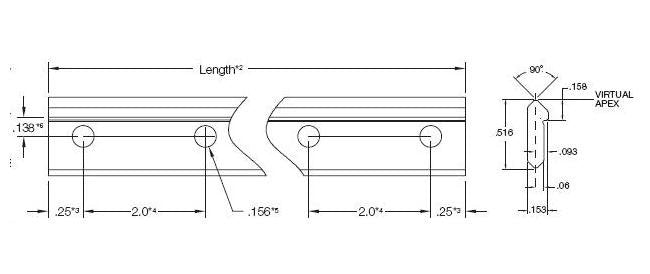

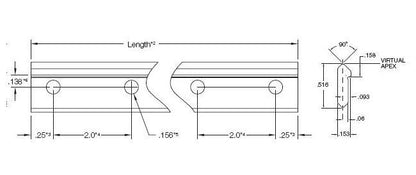

Size 0 MinVee Double Edge Track - Drilled and UndrilledSelf-aligning mounting shoulder for accurately positioning Vee waysDouble edge design ensures parallel Vee waysPre-drilled track allow immediate installation, no matching requiredAISI 1045 carbon steel, hardened polished or unhardened as formed, oiled Custom coating/plating options: black oxide, electroless and nickelStandard pre-drilled track have thru holes

Manufacturing Notes 0

For non-standard track lengths or other non-standard options.The over-all length tolerance is Â±.015 inches for drilled track and Â±.0625 inches for undrilled track.End hole spacing tolerance is Â±.01 inches.Hole to hole spacing tolerance is Â±.01 inches.Hole diameter tolerance is Â±.005 inches.Mounting hole location tolerance is Â±.005 inches.Maximum single piece track lengths: hardened = 18 feet; unhardened = 20 feet.Track weight is .171 lbs/ft.Specify custom length in inches

Specifications Length

30.50 in

Specifications Mounting Spacer Material

Stainless steel

Specifications Number Of Holes

Specifications Track Support Material

Anodized aluminum

Specifications Vee Way Surface Condition

Unhardened, Drilled Rc 22-25
