Autoclave Engineers QS Medium Pressure Straight Couplings
Autoclave Engineers QS Medium Pressure Straight Couplings
SKU:MIN-c39aca
Explore Autoclave Engineers QS Medium Pressure Straight Couplings for reliable and high-pressure connections. Pressure Rating: 15000 psi.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Autoclave Engineers QS Medium Pressure Straight Couplings
$99.99
Quantity: 1
Claim Your Seller Account
Autoclave Engineers QS Medium Pressure Straight Couplings
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autoclave Engineers QS Medium Pressure Straight Couplings are precision-engineered for high-pressure applications, with a pressure rating of 15000 psi. Designed for optimal performance, these couplings feature a QS750 connection type and a corrosion-resistant construction. With an outside diameter tube of 19.05 mm and a minimum opening of 0.52 inches, these couplings provide secure and reliable connections. The tubing engagement depth of 1.00 inch ensures a tight seal, offering durability and efficiency for industrial operations.
Product Specifications
Features Features

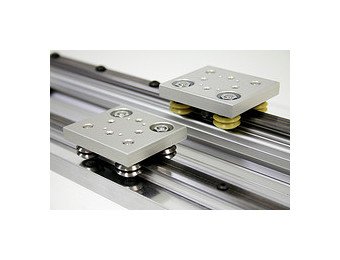

Size 0 MinVee Double Edge Track - Drilled and UndrilledSelf-aligning mounting shoulder for accurately positioning Vee waysDouble edge design ensures parallel Vee waysPre-drilled track allow immediate installation, no matching requiredAISI 1045 carbon steel, hardened polished or unhardened as formed, oiled Custom coating/plating options: black oxide, electroless and nickelStandard pre-drilled track have thru holes
Manufacturing Notes 0

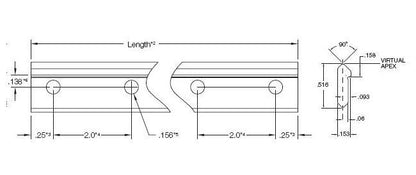

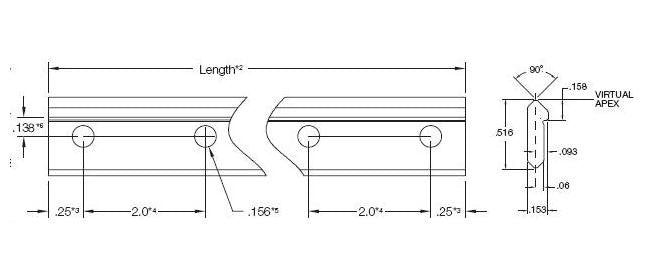

For non-standard track lengths or other non-standard options.The over-all length tolerance is ±.015 inches for drilled track and ±.0625 inches for undrilled track.End hole spacing tolerance is ±.01 inches.Hole to hole spacing tolerance is ±.01 inches.Hole diameter tolerance is ±.005 inches.Mounting hole location tolerance is ±.005 inches.Maximum single piece track lengths: hardened = 18 feet; unhardened = 20 feet.Track weight is .171 lbs/ft.Specify custom length in inches
Specifications Length
30.50 in
Specifications Mounting Spacer Material
Stainless steel
Specifications Number Of Holes
16
Specifications Track Support Material
Anodized aluminum
Specifications Vee Way Surface Condition
Hardened, Drilled Rc 53 Minimum
