High Pressure Antivibration Collet Gland Assembly for extreme vibration and pressure conditions, made of Type 316 stainless steel.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Autoclave High Pressure Antivibration Collet Gland Assembly, from the Series KCBGLX, is designed to withstand extreme vibration and shock in tubing systems up to pressures of 20,000 psi. Made from Type 316 stainless steel with a bonded dry film moly lubricant, this assembly strengthens the tubing structure by reducing stress concentration and offering virtually unlimited vibrational fatigue life. With a less complex and economical design compared to other options, the collet gland assembly features coned-and-threaded connections, ensuring secure pressure handling and durability in challenging conditions.

Product Specifications

Manufacturing Notes 0

The internal faces of the lightening recess in the lightweight version are not ground. On stainless steel ring discs, these surfaces are polished

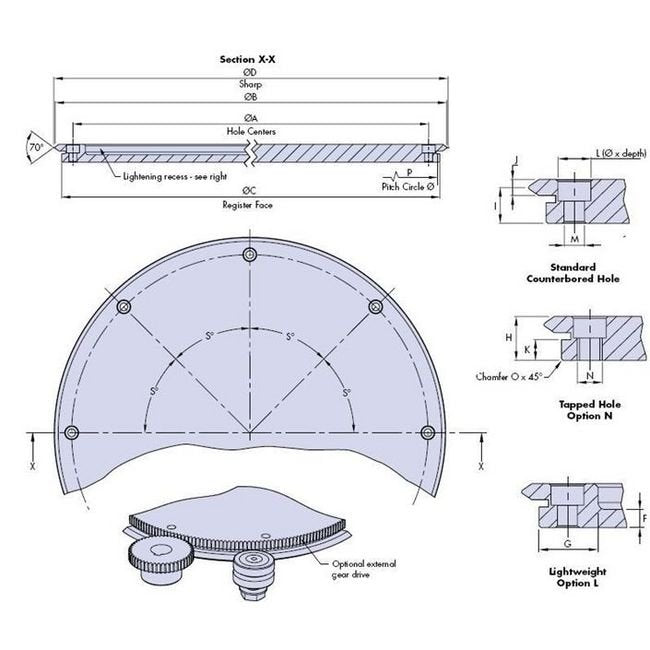

Specifications Dimension A 02

351 mm

Specifications Dimension B

376 mm

Specifications Dimension C

366.4 mm

Specifications Dimension C Tolerance

0.044 mm

Specifications Dimension D

376.74 mm

Specifications Dimension F

5 mm

Specifications Dimension G

15.4 mm

Specifications Dimension H

12.25 mm

Specifications Dimension I 0025

10 mm

Specifications Dimension J

4.5 mm

Specifications Dimension K

5.75 mm

Specifications Dimension L

9 x 6 mm

Specifications Dimension M

5.5 mm

Specifications Dimension M Min

351 mm

Specifications Dimension N

Specifications Dimension O

0.5 mm

Specifications Dimension S Holes Within 02 Of True Position

30 Âº

Specifications Din912 Not Supplied

Specifications External Gear Dimension P

364.8 mm

Specifications External Gear Mod

0.8 mm

Specifications External Gear No Of Teeth

456

Specifications For Use With Bearing

J25

Specifications Light Weight

5.2 kg

Specifications Number Of Holes

Specifications Standard Weight

10.2 kg
