Autoclave High Pressure Coned-and-Threaded Nipples
Autoclave High Pressure Coned-and-Threaded Nipples
SKU:ASS-198ffc
Enhance your system with durable, high-pressure coned-and-threaded nipples from Autoclave Engineers. Custom lengths available.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Autoclave High Pressure Coned-and-Threaded Nipples
$129.99
Quantity: 1
Claim Your Seller Account
Autoclave High Pressure Coned-and-Threaded Nipples
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your high-pressure system with Autoclave High Pressure Coned-and-Threaded Nipples. Crafted from Type 316 Stainless Steel, these nipples ensure durability and reliability under extreme pressure conditions. With a working pressure of 60000 psi at 100°F, these nipples are precision-engineered for rapid system make-up, offering varied lengths and sizes for a custom fit. Meet your system demands with Autoclave's high-quality, compliant fittings.
Product Specifications

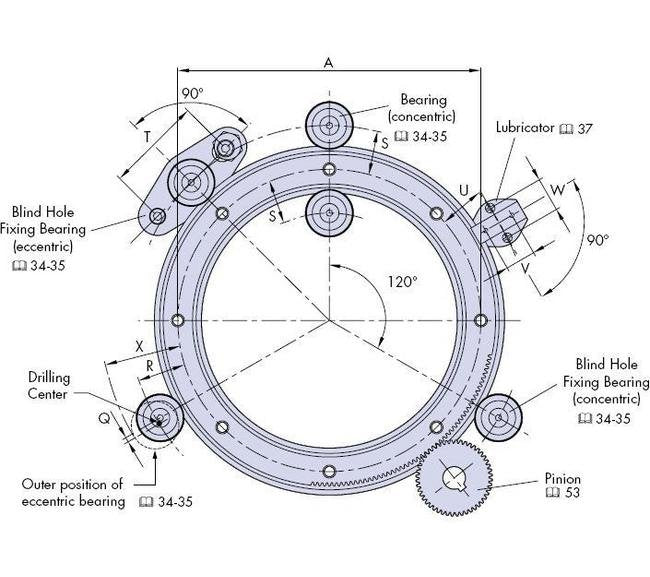

Drilling Positions Dimension Q
1.9 mm
Drilling Positions Dimension R
24.9 mm
Drilling Positions Dimension S
23.0 in
Drilling Positions Dimension T 02
50 mm
Drilling Positions Dimension U 02
22.5 mm
Drilling Positions Dimension V 02
16 mm
Drilling Positions Dimension W 02
18 mm
Manufacturing Notes 0
For Dimension I and J : Two lengths of stud are available for each size of bearing. Choose according to required carriage thickness.For 2 : Offset holes in carriage for eccentric bearings necessitate adjustment in direction of arrow shown.For Drilling Position : Exact theoretical values have been given for 'Q', 'R' and 'S'. Positional accuracy of dimension 'S' will determine the axis of the ring. Positional accuracy for dimensions 'Q' and 'R' are not normally critical. Holes for bearing studs should be reamed to tolerance F6 for a sliding fit.

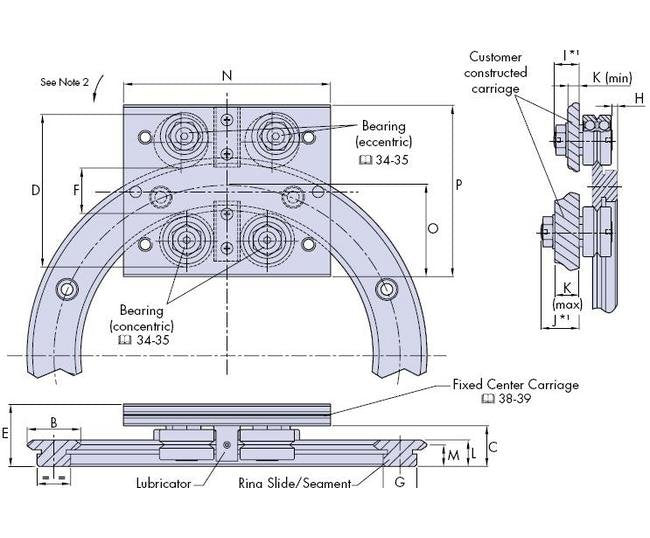

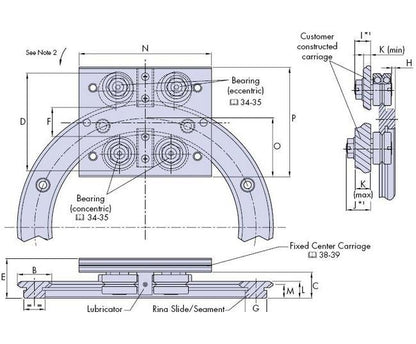

Specifications Dimension A
255 mm
Specifications Dimension B
25 mm
Specifications Dimension D
71.2 mm
Specifications Dimension E
30.5 mm
Specifications Dimension F
20.9 mm
Specifications Dimension G
15.4 mm
Specifications Dimension H
2.4 mm
Specifications Dimension I
9.8 mm
Specifications Dimension J
19 mm
Specifications Dimension K Max
13 mm
Specifications Dimension K Min
2.2 mm
Specifications Dimension L
12.25 mm
Specifications Dimension M
10 mm
Specifications Dimension N
100 mm
Specifications Dimension O
43 mm
Specifications Dimension P
80 mm
Specifications Dimension X
40.2 mm
Specifications For Use With Bearing
J25
