Autoclave High Pressure Coned-and-Threaded Nipples
Autoclave High Pressure Coned-and-Threaded Nipples
SKU:ASS-b88435
Precision-cut Type 316 Stainless Steel nipples for high-pressure systems, with a working pressure of 60000 psi at 100°F.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Autoclave High Pressure Coned-and-Threaded Nipples
$49.99
Quantity: 1
Claim Your Seller Account
Autoclave High Pressure Coned-and-Threaded Nipples
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autoclave High Pressure Coned-and-Threaded Nipples are precision-cut fittings designed for rapid system make-up. Crafted from Type 316 Stainless Steel, these nipples ensure durability and reliability. Available in various lengths and sizes, they seamlessly integrate with Autoclave high pressure valves and fittings. With a working pressure of 60000 psi at 100°F, these nipples deliver exceptional performance under high-pressure conditions. Ideal for institutional and government applications that demand precision and quality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Drilling Positions Dimension Q
1.3 mm
Drilling Positions Dimension R
12.3 mm
Drilling Positions Dimension S
10.9 in
Drilling Positions Dimension T 02
30 mm
Drilling Positions Dimension U 02
11.5 mm
Drilling Positions Dimension V 02
6.5 mm
Drilling Positions Dimension W 02
12 mm
Manufacturing Notes 0

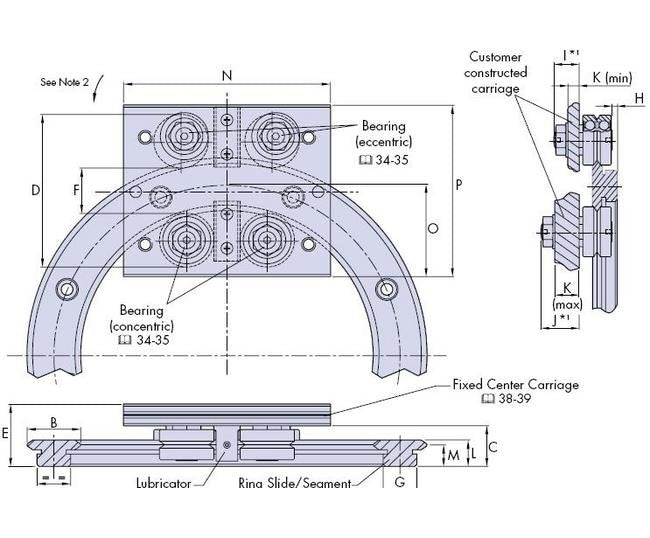

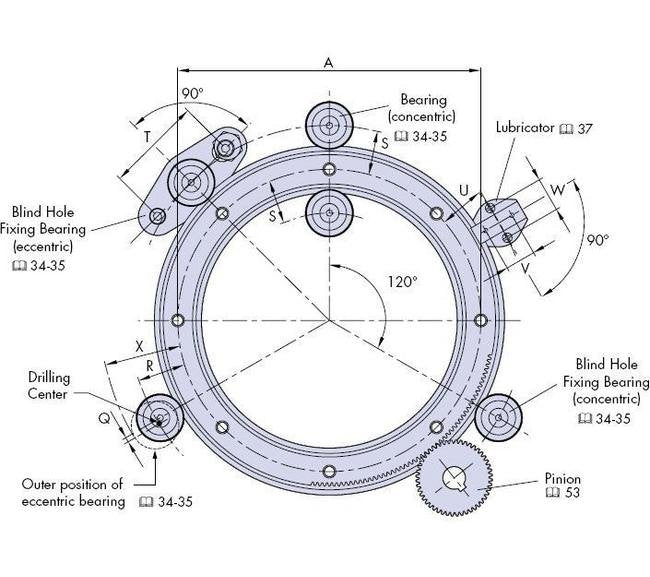

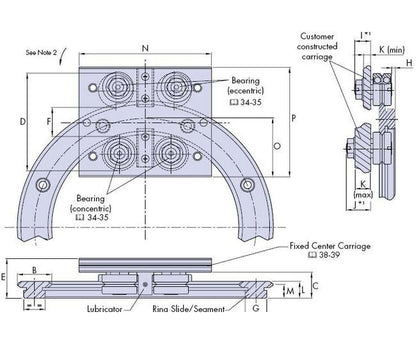

For Dimension I and J : Two lengths of stud are available for each size of bearing. Choose according to required carriage thickness.For 2 : Offset holes in carriage for eccentric bearings necessitate adjustment in direction of arrow shown.For Drilling Position : Exact theoretical values have been given for 'Q', 'R' and 'S'. Positional accuracy of dimension 'S' will determine the axis of the ring. Positional accuracy for dimensions 'Q' and 'R' are not normally critical. Holes for bearing studs should be reamed to tolerance F6 for a sliding fit.
Specifications Dimension A
93 mm
Specifications Dimension B
12 mm
Specifications Dimension D
34.7 mm
Specifications Dimension E
19.0 mm
Specifications Dimension F
9.1 mm
Specifications Dimension G
8.6 mm
Specifications Dimension H
1.5 mm
Specifications Dimension I
5.8 mm
Specifications Dimension J
9.5 mm
Specifications Dimension K Max
6.7 mm
Specifications Dimension K Min
2.2 mm
Specifications Dimension L
7.7 mm
Specifications Dimension M
6.2 mm
Specifications Dimension N
55 mm
Specifications Dimension O
22 mm
Specifications Dimension P
40 mm
Specifications Dimension X
20.5 mm
Specifications For Use With Bearing
J13
