Autoclave High Pressure Coned-and-Threaded Nipples

Autoclave High Pressure Coned-and-Threaded Nipples

ASS-954751

Enhance system make-up with precision and durability using Autoclave High Pressure Coned-and-Threaded Nipples. Crafted from premium stainless steel for reliability under extreme pressure.

$59.99
$59.99
Sale

Initiate Order

Autoclave High Pressure Coned-and-Threaded Nipples

Autoclave High Pressure Coned-and-Threaded Nipples

$59.99

Quantity: 1

Claim Your Seller Account

Autoclave High Pressure Coned-and-Threaded Nipples

Autoclave High Pressure Coned-and-Threaded Nipples

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Autoclave High Pressure Coned-and-Threaded Nipples are engineered for rapid system make-up and compatibility with Autoclave high pressure valves and fittings. Crafted from Type 316 and Type 304 stainless steel, these pre-cut nipples come in various sizes and lengths, with the flexibility for custom lengths. With a working pressure of 43000 psi at 100°F, these nipples ensure reliability, durability, and precise fit. Ideal for high-pressure applications requiring top-notch performance and compliance standards.

Product Specifications

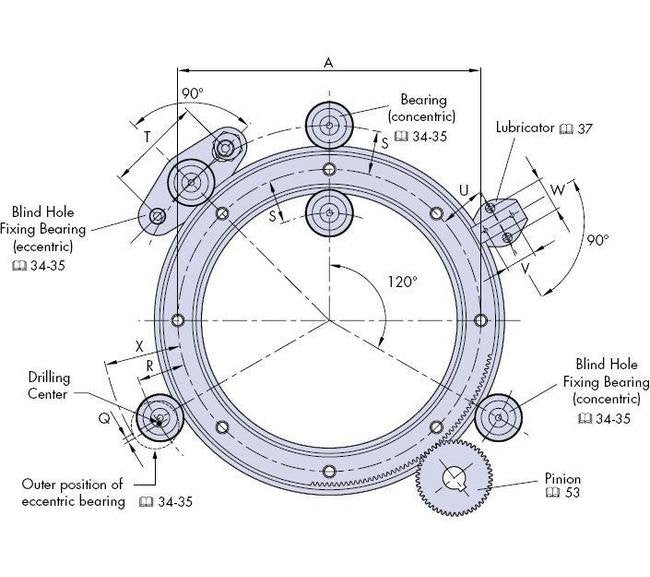

Drilling Positions Dimension Q
3.9 mm
Drilling Positions Dimension R
63.1 mm
Drilling Positions Dimension S
59.2 in
Drilling Positions Dimension T 02
89.5 mm
Drilling Positions Dimension U 02
57 mm
Drilling Positions Dimension V 02
33 mm
Drilling Positions Dimension W 02
38 mm
Manufacturing Notes 0

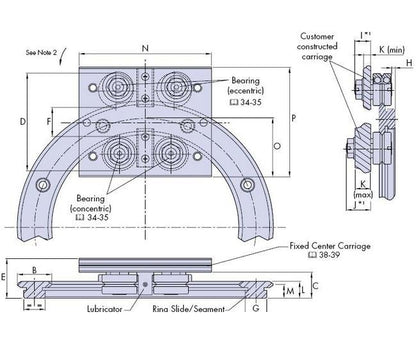

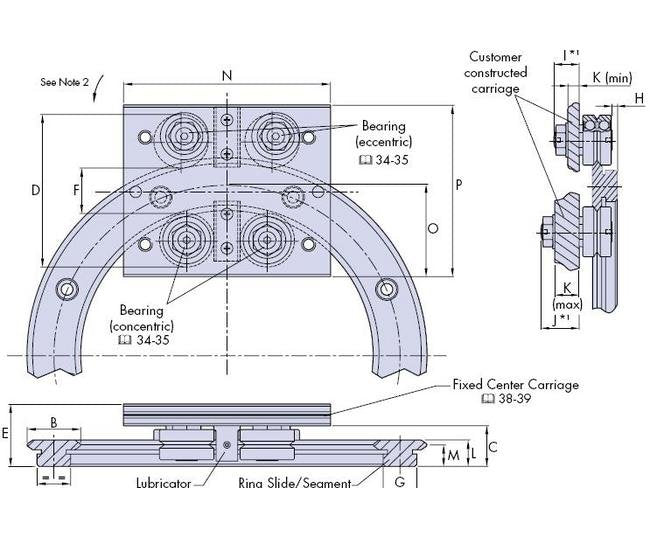

For Dimension I and J : Two lengths of stud are available for each size of bearing. Choose according to required carriage thickness.For 2 : Offset holes in carriage for eccentric bearings necessitate adjustment in direction of arrow shown.For Drilling Position : Exact theoretical values have been given for 'Q', 'R' and 'S'. Positional accuracy of dimension 'S' will determine the axis of the ring. Positional accuracy for dimensions 'Q' and 'R' are not normally critical. Holes for bearing studs should be reamed to tolerance F6 for a sliding fit.
Specifications Dimension A
799 mm
Specifications Dimension B
76 mm
Specifications Dimension D
172.8 mm
Specifications Dimension E
58.5 mm
Specifications Dimension F
64.4 mm
Specifications Dimension G
50.5 mm
Specifications Dimension H
3.8 mm
Specifications Dimension I
17.8 mm
Specifications Dimension J
30 mm
Specifications Dimension K Max
20.4 mm
Specifications Dimension K Min
5.7 mm
Specifications Dimension L
24 mm
Specifications Dimension M
19.5 mm
Specifications Dimension N
190 mm
Specifications Dimension O
96 mm
Specifications Dimension P
185 mm
Specifications Dimension X
95.6 mm
Specifications For Use With Bearing
J54
