Autoclave High Pressure Coned-and-Threaded Nipples
Autoclave High Pressure Coned-and-Threaded Nipples
SKU:ASS-d8a46a
Precision-engineered High Pressure Coned-and-Threaded Nipples for rapid system make-up in industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Autoclave High Pressure Coned-and-Threaded Nipples
$89.99
Quantity: 1
Claim Your Seller Account
Autoclave High Pressure Coned-and-Threaded Nipples
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autoclave High Pressure Coned-and-Threaded Nipples are precision-engineered for rapid system make-up. Crafted from Type 316 and Type 304 Stainless steel, these nipples offer superior durability and performance. Available in various sizes and custom lengths, they ensure a perfect fit for Autoclave high pressure valves and fittings. With a working pressure of 60,000 psi at 100°F, these nipples are designed to meet the most stringent industrial demands.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

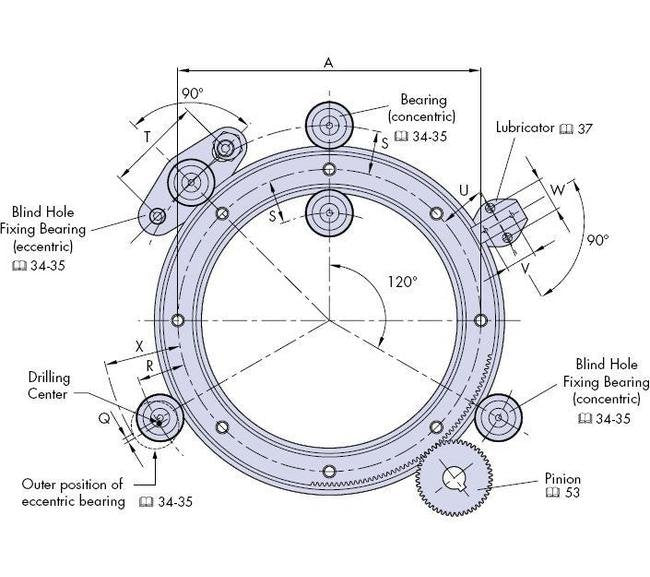

Drilling Positions Dimension Q
1.9 mm
Drilling Positions Dimension R
24.9 mm
Drilling Positions Dimension S
23.0 in
Drilling Positions Dimension T 02
50 mm
Drilling Positions Dimension U 02
22.5 mm
Drilling Positions Dimension V 02
16 mm
Drilling Positions Dimension W 02
18 mm
Manufacturing Notes 0
For Dimension I and J : Two lengths of stud are available for each size of bearing. Choose according to required carriage thickness.For 2 : Offset holes in carriage for eccentric bearings necessitate adjustment in direction of arrow shown.For Drilling Position : Exact theoretical values have been given for 'Q', 'R' and 'S'. Positional accuracy of dimension 'S' will determine the axis of the ring. Positional accuracy for dimensions 'Q' and 'R' are not normally critical. Holes for bearing studs should be reamed to tolerance F6 for a sliding fit.

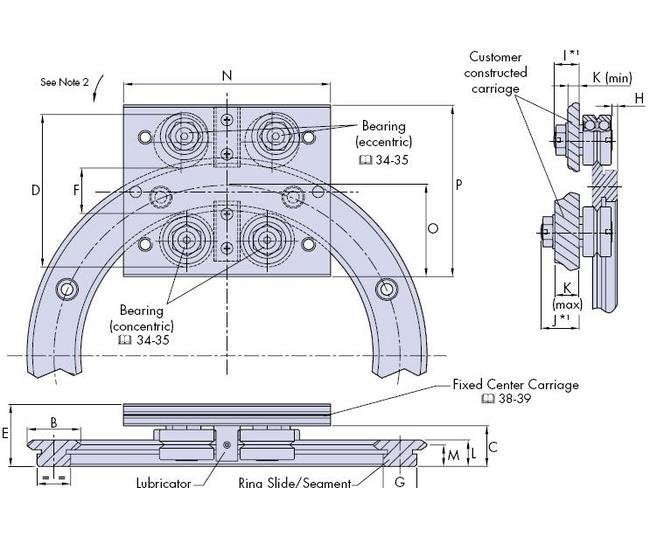

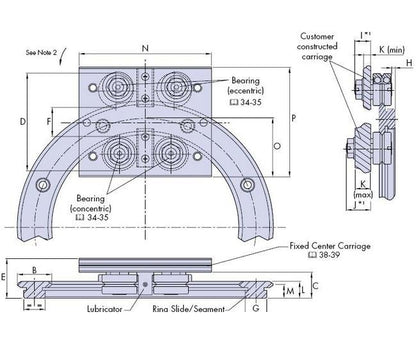

Specifications Dimension A
351 mm
Specifications Dimension B
25 mm
Specifications Dimension D
71.2 mm
Specifications Dimension E
30.5 mm
Specifications Dimension F
20.9 mm
Specifications Dimension G
15.4 mm
Specifications Dimension H
2.4 mm
Specifications Dimension I
9.8 mm
Specifications Dimension J
19 mm
Specifications Dimension K Max
13 mm
Specifications Dimension K Min
2.2 mm
Specifications Dimension L
12.25 mm
Specifications Dimension M
10 mm
Specifications Dimension N
105 mm
Specifications Dimension O
43 mm
Specifications Dimension P
80 mm
Specifications Dimension X
40.2 mm
Specifications For Use With Bearing
J25
