Autoclave High Pressure Stainless Steel Tubing

Name: Autoclave High Pressure Stainless Steel Tubing
Brand: Bishop-Wisecarver
SKU: PIN-97e161
Price: 599.99 USD
Availability: OutOfStock

SKU:PIN-97e161

Premium stainless steel tubing for high pressure applications, offering strength, corrosion resistance, and precise dimensions. Hydrostatic tested for safety. Available in multiple sizes and materials.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your high pressure applications with Autoclave Engineers' premium high pressure stainless steel tubing. Designed to match Autoclave valves and fittings, this tubing offers exceptional strength and corrosion resistance. With precise control over outside and inside diameters, along with close tolerances, this tubing ensures reliable performance in demanding environments. Hydrostatic testing at the working pressure adds an extra layer of safety and quality assurance. Available in various sizes and materials including type 316 and 304 stainless steel, Monel 400, Inconel 600, Titanium Grade 2, Nickel 200, and Hastelloy C276, ensuring compatibility with a range of industrial needs. Contact us for availability of special materials and longer lengths.

Product Specifications

Manufacturing Notes 0

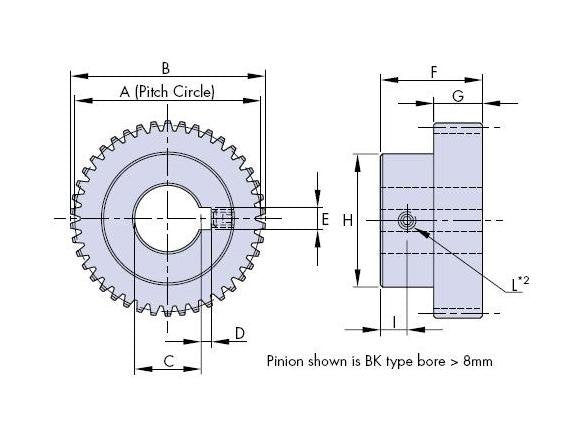

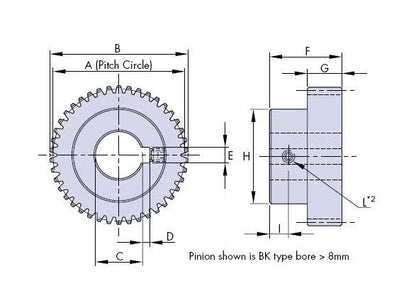

For Dimension D and E: Small "BK" type pinions with bores below 8 mm are supplied with set screw through to the bore but without keyway. It is usual practice to secure these pinions by means of a set screw onto a flat on the shaft or by using a taper pin. For Dimension L: Pinions are supplied with a flat point set screw DIN 913 (ISO 4026).For Material: ST = Steel, SS = Stainless Steel

Specifications Condition

Teeth unhardened and unground

Specifications Dimension A

38.4 mm

Specifications Dimension B

40 mm

Specifications Dimension C

12 mm

Specifications Dimension D

1.8 mm

Specifications Dimension E

4 mm

Specifications Dimension F

12 mm

Specifications Dimension G

4 mm

Specifications Dimension H

26 mm

Specifications Dimension I

4 mm

Specifications Dimension L

Specifications For Use With Ring Slides

R20

Specifications Iso 1328 Grade

Specifications Material

Specifications Module

0.8

Specifications Number Of Teeth

Specifications Weight

50 g
