Autoclave High Pressure Stainless Steel Tubing
Autoclave High Pressure Stainless Steel Tubing
SKU:PIN-87869a
High pressure stainless steel tubing designed for strength, corrosion resistance, and precise performance matching Autoclave valves and fittings.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Autoclave High Pressure Stainless Steel Tubing
$299.99
Quantity: 1
Claim Your Seller Account
Autoclave High Pressure Stainless Steel Tubing
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Engineered by Autoclave Engineers, this high pressure tubing is meticulously crafted from austenitic, cold drawn stainless steel to meet the rigorous performance standards of Autoclave valves and fittings. Designed for high pressure applications, this tubing offers exceptional strength and corrosion resistance. Available in random lengths between 20 to 27 feet, with close-tolerance control of both outside and inside diameters, this tubing is ideal for demanding environments where reliability is paramount.
Product Specifications
Manufacturing Notes 0

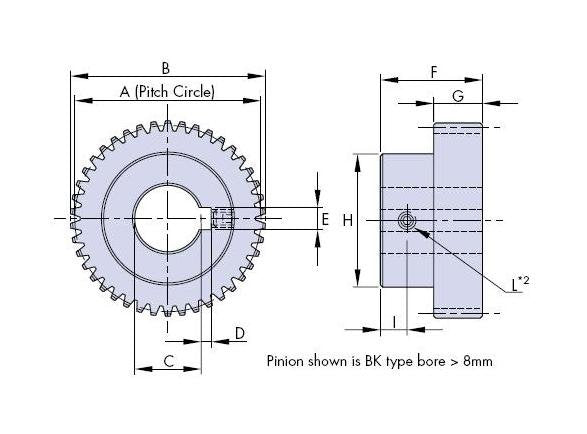

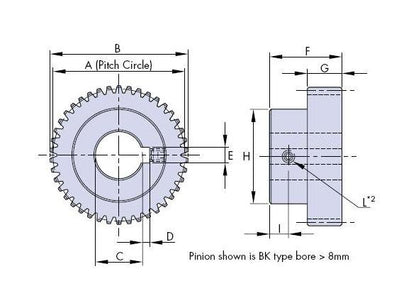

For Dimension D and E: Small "BK" type pinions with bores below 8 mm are supplied with set screw through to the bore but without keyway. It is usual practice to secure these pinions by means of a set screw onto a flat on the shaft or by using a taper pin. For Dimension L: Pinions are supplied with a flat point set screw DIN 913 (ISO 4026).For Material: ST = Steel, SS = Stainless Steel
Specifications Condition
Teeth unhardened and unground
Specifications Dimension A
16.8 mm
Specifications Dimension B
17.6 mm
Specifications Dimension C
5 mm
Specifications Dimension F
10 mm
Specifications Dimension G
3.5 mm
Specifications Dimension H
10 mm
Specifications Dimension I
3 mm
Specifications Dimension L
M3
Specifications For Use With Ring Slides
R12
Specifications Iso 1328 Grade
10
Specifications Material
SS
Specifications Module
0.4
Specifications Number Of Teeth
42
Specifications Weight
10 g
