Autoclave High Pressure Tubing - 304SS
Autoclave High Pressure Tubing - 304SS
SKU:PIN-181025
Discover Autoclave's high pressure tubing - the pinnacle in strength and corrosion resistance, ideal for extreme applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Autoclave High Pressure Tubing - 304SS
$99.99
Quantity: 1
Claim Your Seller Account
Autoclave High Pressure Tubing - 304SS
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior performance with Autoclave Engineers' high pressure tubing crafted from austenitic, cold drawn stainless steel. Engineered to match Autoclave valves and fittings, this tubing offers exceptional strength and corrosion resistance. With precise control over outside and inside diameters, as well as rigorous hydrostatic testing at working pressures up to 800°F, this tubing ensures reliability under extreme conditions. Available in various lengths and materials, including special options like Monel 400 and Inconel 600, to meet diverse high pressure application needs.
Product Specifications
Manufacturing Notes 0

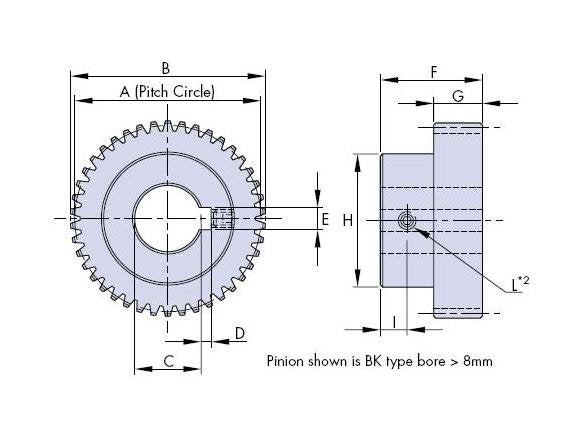

For Dimension D and E: Small "BK" type pinions with bores below 8 mm are supplied with set screw through to the bore but without keyway. It is usual practice to secure these pinions by means of a set screw onto a flat on the shaft or by using a taper pin. For Dimension L: Pinions are supplied with a flat point set screw DIN 913 (ISO 4026).For Material: ST = Steel, SS = Stainless Steel
Specifications Condition
Teeth unhardened and unground
Specifications Dimension A
38.4 mm
Specifications Dimension B
40 mm
Specifications Dimension C
12 mm
Specifications Dimension D
1.8 mm
Specifications Dimension E
4 mm
Specifications Dimension F
14 mm
Specifications Dimension G
6 mm
Specifications Dimension H
26 mm
Specifications Dimension I
4 mm
Specifications Dimension L
M3
Specifications For Use With Ring Discs
RD25
Specifications For Use With Ring Slides
R25
Specifications Iso 1328 Grade
10
Specifications Material
SS
Specifications Module
0.8
Specifications Number Of Teeth
48
Specifications Weight
75 g
