Autoclave HP-160 High Pressure Tubing

Name: Autoclave HP-160 High Pressure Tubing
Brand: Bishop-Wisecarver
SKU: PIN-dc8048
Price: 150.0 USD
Availability: OutOfStock

SKU:PIN-dc8048

Autoclave HP-160 High Pressure Tubing - Designed for strength and corrosion resistance in high pressure applications. Various sizes and materials available.

$150.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Autoclave HP-160 High Pressure Tubing is meticulously crafted from austenitic, cold drawn stainless steel to impeccably match the performance standards of Autoclave valves and fittings. Designed for high pressure applications, this tubing ensures exceptional strength and superior corrosion resistance. Available in random lengths between 20 to 27 feet, with options for longer lengths and various sizes, this high pressure tubing guarantees precise control over outside and inside diameters. It undergoes rigorous inspection and testing to eliminate flaws, with mechanical properties confirmed through sample testing and hydrostatic testing at working pressures. In addition to stainless steel, special materials like Monel, Inconel, Titanium, Nickel, and Hastelloy are also available upon consultation with the factory.

Product Specifications

Manufacturing Notes 0

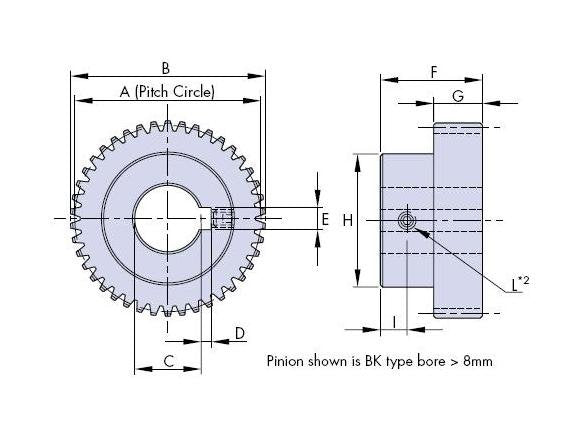

For Dimension D and E: Small "BK" type pinions with bores below 8 mm are supplied with set screw through to the bore but without keyway. It is usual practice to secure these pinions by means of a set screw onto a flat on the shaft or by using a taper pin. For Dimension L: Pinions are supplied with a flat point set screw DIN 913 (ISO 4026).For Material: ST = Steel, SS = Stainless Steel

Specifications Condition

Teeth hardened and ground

Specifications Dimension A

42.5 mm

Specifications Dimension B

45 mm

Specifications Dimension C

15 mm

Specifications Dimension D

2.3 mm

Specifications Dimension E

5 mm

Specifications Dimension F

25.5 mm

Specifications Dimension G

14 mm

Specifications Dimension H

30 mm

Specifications Dimension I

5.75 mm

Specifications Dimension L

Specifications For Use With Curved Segments

REM, RIM

Specifications For Use With Track Slides

TNME

Specifications Iso 1328 Grade

Specifications Material

ST/SS

Specifications Module

1.25

Specifications Number Of Teeth

Specifications Weight

200 g
