The Autoclave QS Medium Pressure Bulkhead Couplings are expertly designed fittings for high-pressure systems, boasting a Pressure Rating of 15000 psi. With a sturdy construction and precise specifications, these couplings ensure secure connections and long-lasting performance. The QS562 Connection Type, along with the 14.29mm Outside Diameter Tube, makes them versatile for various applications. Meeting stringent industry standards, these couplings are the top choice for reliable and durable connections in institutional and government settings.

Product Specifications

Features Features

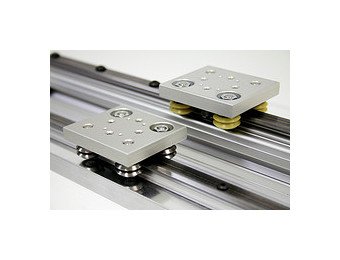

Size 0 MinVee Double Edge Track - Drilled and UndrilledSelf-aligning mounting shoulder for accurately positioning Vee waysDouble edge design ensures parallel Vee waysPre-drilled track allow immediate installation, no matching requiredAISI 1045 carbon steel, hardened polished or unhardened as formed, oiled Custom coating/plating options: black oxide, electroless and nickelStandard pre-drilled track have thru holes

Manufacturing Notes 0

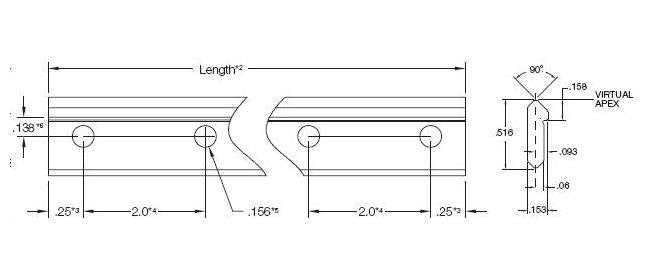

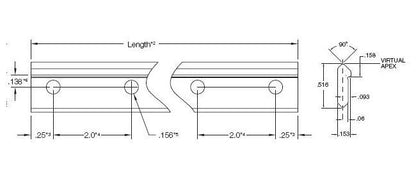

For non-standard track lengths or other non-standard options.The over-all length tolerance is Â±.015 inches for drilled track and Â±.0625 inches for undrilled track.End hole spacing tolerance is Â±.01 inches.Hole to hole spacing tolerance is Â±.01 inches.Hole diameter tolerance is Â±.005 inches.Mounting hole location tolerance is Â±.005 inches.Maximum single piece track lengths: hardened = 18 feet; unhardened = 20 feet.Track weight is .171 lbs/ft.Specify custom length in inches

Specifications Length

24.50 in

Specifications Mounting Spacer Material

Stainless steel

Specifications Number Of Holes

Specifications Track Support Material

Anodized aluminum

Specifications Vee Way Surface Condition

Unhardened, Drilled Rc 22-25
