Autoclave QS Medium Pressure Bulkhead Couplings

Name: Autoclave QS Medium Pressure Bulkhead Couplings
Brand: Bishop-Wisecarver
SKU: MIN-8a9b54
Price: 129.99 USD
Availability: OutOfStock

SKU:MIN-8a9b54

Reliable and durable Autoclave QS Medium Pressure Bulkhead Couplings for high-pressure applications. Pressure rating: 15000 psi.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Autoclave QS Medium Pressure Bulkhead Couplings are designed for precision and durability, ensuring a secure and leak-free connection in high-pressure applications. With a pressure rating of 15000 psi, these couplings feature a QS250 connection type, 6.35 mm outside diameter tube compatibility, and a tubing engagement depth of 0.75 inches. The construction includes appropriate glands and compression sleeves, guaranteeing a reliable fit. Suitable for diverse industrial needs, Autoclave's Medium Pressure Bulkhead Couplings prioritize performance and safety.

Product Specifications

Features Features

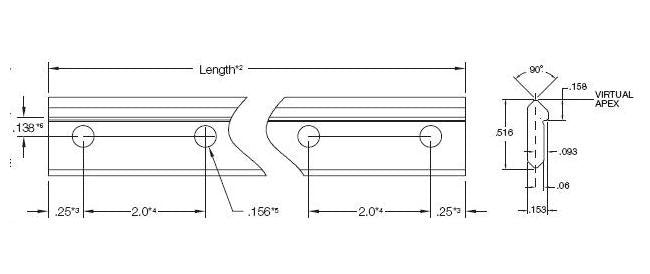

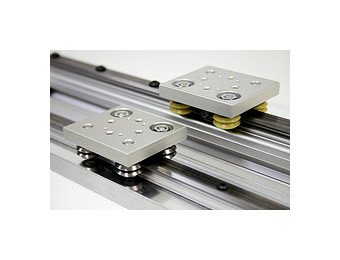

Size 0 MinVee Double Edge Track - Drilled and UndrilledSelf-aligning mounting shoulder for accurately positioning Vee waysDouble edge design ensures parallel Vee waysPre-drilled track allow immediate installation, no matching requiredAISI 1045 carbon steel, hardened polished or unhardened as formed, oiled Custom coating/plating options: black oxide, electroless and nickelStandard pre-drilled track have thru holes

Manufacturing Notes 0

For non-standard track lengths or other non-standard options.The over-all length tolerance is Â±.015 inches for drilled track and Â±.0625 inches for undrilled track.End hole spacing tolerance is Â±.01 inches.Hole to hole spacing tolerance is Â±.01 inches.Hole diameter tolerance is Â±.005 inches.Mounting hole location tolerance is Â±.005 inches.Maximum single piece track lengths: hardened = 18 feet; unhardened = 20 feet.Track weight is .171 lbs/ft.Specify custom length in inches

Specifications Length

36.50 in

Specifications Mounting Spacer Material

Stainless steel

Specifications Number Of Holes

Specifications Track Support Material

Anodized aluminum

Specifications Vee Way Surface Condition

Hardened, Drilled Rc 53 Minimum

Autoclave QS Medium Pressure Bulkhead Couplings
