Autoclave QS Medium Pressure O-Ring Check Valve - 15000 psi
Autoclave QS Medium Pressure O-Ring Check Valve - 15000 psi
SKU:MIN-5a3e0e
Ensure dependable unidirectional flow & tight shut-off with the Autoclave QS Medium Pressure O-Ring Check Valve - 15000 psi. Constructed with premium materials for reliability.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Autoclave QS Medium Pressure O-Ring Check Valve - 15000 psi
$349.99
Quantity: 1
Claim Your Seller Account
Autoclave QS Medium Pressure O-Ring Check Valve - 15000 psi
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autoclave QS Medium Pressure O-Ring Check Valve is designed to deliver reliable unidirectional flow control and tight shut-off for both liquid and gas applications. Constructed with high-quality 316 Stainless Steel components and a Viton O-ring capable of operating up to 500°F (260°C), this valve ensures superior performance and longevity. With a pressure rating of 15000 psi and a rated Cv of 4.70, this valve offers exceptional precision and durability. Ideal for industrial, government, and institutional applications requiring high-pressure fittings with uncompromising quality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features

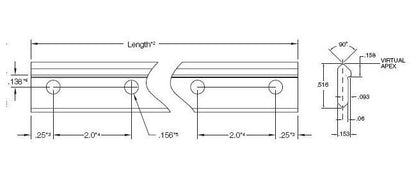

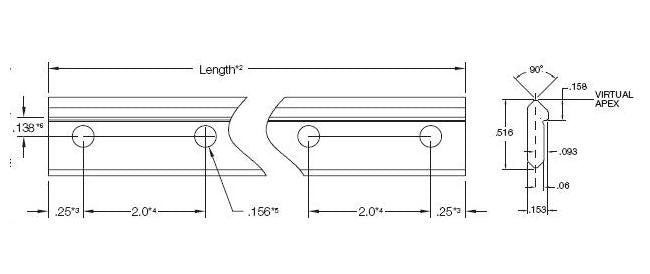

Size 0 MinVee Double Edge Track - Drilled and UndrilledSelf-aligning mounting shoulder for accurately positioning Vee waysDouble edge design ensures parallel Vee waysPre-drilled track allow immediate installation, no matching requiredAISI 1045 carbon steel, hardened polished or unhardened as formed, oiled Custom coating/plating options: black oxide, electroless and nickelStandard pre-drilled track have thru holes
Manufacturing Notes 0
For non-standard track lengths or other non-standard options.The over-all length tolerance is ±.015 inches for drilled track and ±.0625 inches for undrilled track.End hole spacing tolerance is ±.01 inches.Hole to hole spacing tolerance is ±.01 inches.Hole diameter tolerance is ±.005 inches.Mounting hole location tolerance is ±.005 inches.Maximum single piece track lengths: hardened = 18 feet; unhardened = 20 feet.Track weight is .171 lbs/ft.Specify custom length in inches
Specifications Length
36.50 in
Specifications Mounting Spacer Material
Stainless steel
Specifications Number Of Holes
19
Specifications Track Support Material
Anodized aluminum
Specifications Vee Way Surface Condition
Unhardened, Drilled Rc 22-25
