Autoclave Speedbite Low Pressure Couplings
Autoclave Speedbite Low Pressure Couplings
SKU:ECO-5cf21c
Join tubing and pipes with Autoclave Speedbite Couplings for reliable low-pressure performance. SW250 and SF250CX connections, 0.63" hex, 1.63" length.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Autoclave Speedbite Low Pressure Couplings
$39.99
Quantity: 1
Claim Your Seller Account
Autoclave Speedbite Low Pressure Couplings
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autoclave Speedbite Low Pressure Couplings are designed to seamlessly join standard size tubing or tubing with standard pipe using female-to-female connections. These couplings ensure reliable performance under low-pressure conditions. Featuring SW250 and SF250CX connections, with a hex size of 0.63 inches and a length of 1.63 inches, these couplings are precision-engineered for durability and easy installation. Compliance with Federal/DoD procurement standards and industry-specific certifications make them ideal for government and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Durable Design Durable Design

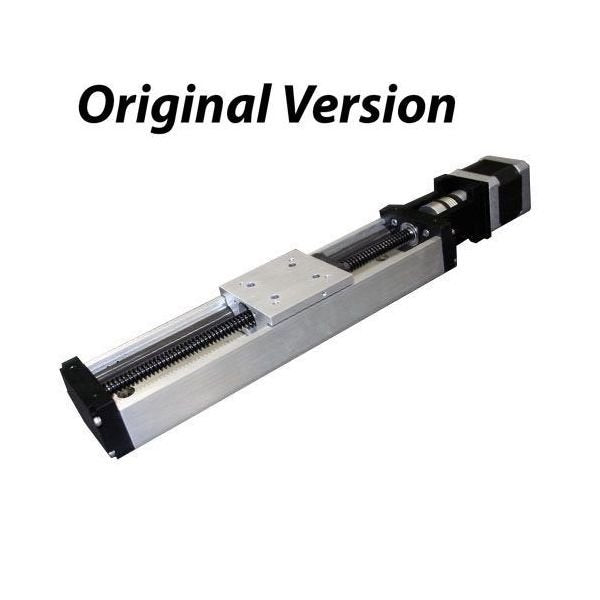

The ECO60 is made to be tough and durable. The base, end plates and top carriage are all made from 6061-T6 aluminum and are machined to have all surfaces within .002â. All parts are anodized for an attractive, corrosion-resistant finish. Linear slide shafting is made from hardcoat finished aluminum.
Features Features
Compact footprint of 60mm wide by 33mm tallStainless steel 0.200â lead screwSupplied with NEMA 17 motor mount flange
Gantry Configurations Gantry Configurations
Gantry and multi-axis configurations are simple to configure and design with the standardized gantry plates. The XY plate enables 2-axis attachment across a horizontal plane, while the XZ bracket enables 2-axis attachment in a vertical plane. The Signature Motion ECO60 can be mounted horizontally, vertically, or inverted without a reduction in load capacity.
Harsh Environment Ready Harsh Environment Ready
Hardcoat shafting combined with the sliding linear elements make the ECO60 ideal for harsh or wet conditions including diluted lye, weak acids, cleaning agents for wash down applications, alcohol, hydrocarbons, grease, oils and fuel.
Low Maintenance Adaptable And Half The Price Low Maintenance Ada
The ECO60 is comparable to Asian actuators with a footprint of 60mm wide by 33mm tall. Thatâs where the similarities end. The ECO60 has a pre-loadable carriage top can be custom adjusted to suit your needs. Find the perfect balance between snug fit and smooth linear motion. As the sliding elements wear, make adjustments to correct until they are worn out and then replace them with an ECO60 repair kit.
Options Options
Optional dust cover stripHome and limit travel sensorsLead screw pitch choicesNEMA 17 or NEMA 23 stepper motor mounts
Specifications Lead Screw Material
Stainless Steel
Specifications Model
E60T18P
Specifications Screw Lead Size
0.200 in
Specifications Travel Length
18 in
The Eco60 Carriage The Eco60 Carriage
The ECO60 carriage is made from billet aluminum and all surfaces are machined to allow for correct contact and conformity between the sliding element linear bearings and the hard anodized shafting to enable smooth and efficient linear motion. The carriage is anodized and has stainless steel threaded inserts in the carriage pre-load adjusting threaded holes for improved durability and strength.The sliding element linear bearings are constrained inside specially machined notches to maintain alignment and make assembly simple. The liner bearing material is polymer and suitable for a wide range of applications including in wet and debris contaminated areas. The carriage pre-load is easily field adjustable to provide user preferred snugness and can be re-adjusted to compensate for wear on the linear bearings. The sliding elements can be replaced when worn out.
The Eco60 Repair Kit The Eco60 Repair Kit
BWC Offers a repair kit which includes the end support bearings, lead screw nut, sliding elements, bearings and a lubrication pen. The repair kit enable long service life without having to change the complete actuator assembly and within minutes you will be fully functional.
