Autoclave Universal Safety Heads
Autoclave Universal Safety Heads
SKU:HEP-6e7d5d
Reliable high-pressure safety heads for system over-pressure protection. Versatile, durable, and easy to install.
Regular price
$449.99
Regular price
Sale price
$449.99
Unit price
per
Initiate Order
Autoclave Universal Safety Heads
$449.99
Quantity: 1
Claim Your Seller Account
Autoclave Universal Safety Heads
$449.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autoclave Universal Safety Heads provide cost-effective and reliable relief port solutions to safeguard against system over-pressure. Designed to meet high-pressure requirements, these safety heads come in three series, compatible with Autoclave Low Pressure, Medium Pressure, and High Pressure valves. Featuring a non-rotating double-cone plug design for minimal leakage, interchangeable hold-down rings for versatility, and cold-worked Type 316 SS components for durability. These safety heads are engineered to accommodate a wide range of rupture disc sizes and pressures, ensuring flexibility and ease of installation in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

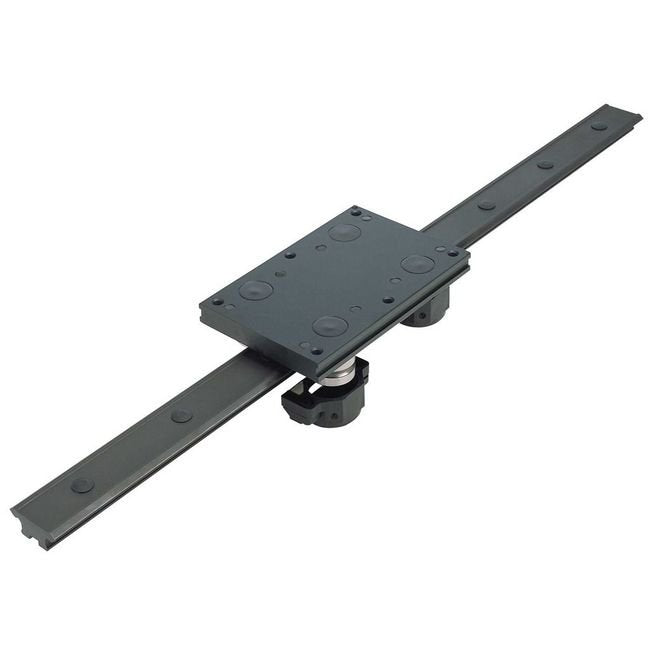

Simple Select utilizes proven Hepco vee slide technology and is ideal for high speed and short stroke movements. The guide track can be fitted to unmachined surfaces if required and is great for attaching to extruded aluminum profiles. The design enables short installation time because the linear bearing carriage is assembled and adjusted to the linear track. Simply mount the track with fasteners, and attach your load to the carriage. The carriage features double row ball bearing guide wheels for long and trouble free life. The wheels are covered and protected by cap seal wipers which prevent dirt ingress and ensure constant positive lubrication.The vee slides are made from AISI 52100 high carbon bearing grade steel with the vee faces are hardened for wear resistance to 58-62 Rockwell C scale. They are finished in chemical black and provided with mounting hole blanking plugs.The wheel plate carriages are made from high strength aluminum alloy and are finished in black anodize. They feature pre-mounted and adjusted linear guide bearings with cap seals. The cap seal wheel covers are made from impact resistant thermoplastic elastomer and hold lubricating felt wipers to push debris aside and to apply a light film of lubricating oil. The wheel plate carriage is high speed capable and has a maximum linear speed of 8 m/s when used with a lubricated vee slide. This configuration includes two size 25 wheel plate carriages pre-assembled and adjusted to 716 mm of size 25 double edge slide track.Most applications involve central L1 loads. In these cases simply divide your load (N) by the carriage L1 capacity figure to determine a load factor. Then simply read off the line from the graph. For offset loads you will need to add the relevant load factors to determine the total. Load Factor should not exceed 1.
Features Features
Complete linear guide assembly with guide track Solid steel spacer slide with 70-degree vees, hardened Carriage assembly with 6 threaded mounting holes Chemical black finish, and black anodize Supplied with blanking plugs to seal all holes
Specifications Carriage
2
Specifications Carriage Capacity M
30
Specifications Carriage Capacity Ms
9
Specifications Carriage Capacity Mv
56
Specifications Load Carried L1
800 N
Specifications Load Carried L2
1500 N
Specifications Model
252-716
Specifications Size
25
Specifications Track Length
716 mm
