Automated Horizontal L-Sealer Shrink Wrapping Machine
Automated Horizontal L-Sealer Shrink Wrapping Machine
SKU:HOR-7ac0a2
Cutting-edge Automatic L-Sealer for efficient shrink packaging with precision control and high-speed operation
Regular price
$29,999.00
Regular price
Sale price
$29,999.00
Unit price
per
Initiate Order
Automated Horizontal L-Sealer Shrink Wrapping Machine
$29,999.00
Quantity: 1
Claim Your Seller Account
Automated Horizontal L-Sealer Shrink Wrapping Machine
$29,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

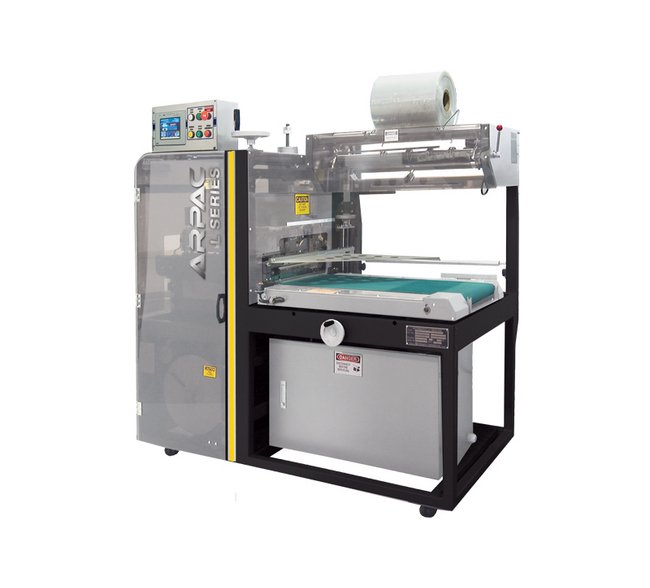

The Automated Horizontal L-Sealer Shrink Wrapping Machine is a cutting-edge solution for efficient and reliable shrink packaging. With a welded steel frame, guillotine style hot knife seal bar, and user-friendly color touch-screen interface, this machine offers precise control and high-speed operation. Its innovative features such as the adjustable seal height, pinch roller design, and seal head calibration ensure consistent and professional packaging results. Suitable for a wide range of product sizes and types, this machine is designed to meet the demands of both retail and institutional packaging requirements.
Product Specifications
Additional Information Additional Information
Mode of OperationThe product is automatically or manually loaded onto the infeed conveyor of the wrapper. The conveyor belt moves the product into the tube of film formed by the film former. A guide located at the back side of the infeed conveyor guides the product as it travels through the film former. The machine detects the product and starts the powered film unwind feeding film. This eliminates any film tension against the product.The product in the film tube then continues into the L-seal area. When the product clears the seal bars the discharge conveyor stops and the seal bars close, sealing and cutting the film around the product. If another product enters the infeed conveyor and the seal bars are closed the infeed conveyor will stop just before the product contacts the seal bar. After the seal dwell timer times out the seal bars open, the infeed conveyor restarts if it had stopped and the discharge conveyor restarts transferring the product sealed in film onto the customers conveyor or an optional tunnel conveyor belt. The scrap film created by the side seal is taken up by a film rewind system located under the discharge conveyor.
Electrical Power Requirements Alternating Current Ac Voltage
220 V
Electrical Power Requirements Current
15 A
Electrical Power Requirements Frequency
60 Hz
Electrical Power Requirements Number Of Phase
1
Factory Acceptance Test Fat Factory Acceptance Test Fat
One day Factory Acceptance Test for one product size is included. If more Factory Acceptance Testing is required see Machine Options, "Testing of additional products (each)", for price of each additional product.
Features Features

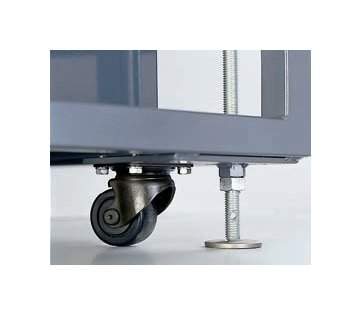

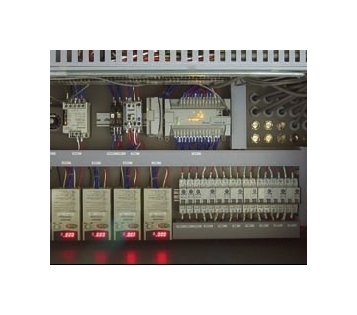

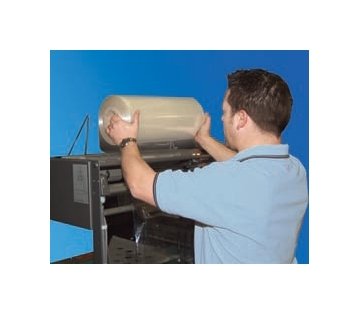

Welded steel frame in a compact size for space efficiency.Guillotine style hot knife seal bar design.Single point adjustment seal height with automatic seal cylinder stroke limiting."Seal Height Calibration Sequence" automatically determines proper seal head cushioning.45-90 FPM variable speed conveyor.Soft start by AC frequency control.Allen Bradley® MicroLogix PLC and color touch-screen interface.Continuous product staging infeed.Easy load film cradle with on demand power film feed.Perforator wheel hole punch (pneumatic hole punch optional).Film pinch roller is positioned ahead of seal head eliminating film breaks/tears.Scrap film trim removal by rewind system.Casters with adjustable legs. Guarding and FinishAll working areas are guarded with clear polycarbonate hinged doors with electrical interlocks.Gray Powder Coated Finish is the ARPAC Standard
Options Options
VT122248 Vision Shrink TunnelVT122272 Vision Shrink TunnelTesting of additional products (each)2" Seal Height Extension - Increases seal jaw opening to 8" (incompatible with closing conveyor option) ARPAC Polyethylene seal bars (Instead of Standard)Auxiliary E-StopAuxiliary infeed control relay. Available in field retro kit form.Film Centerfolder 52". Available in field retro kit form. Add 4 to 6 weeks to delivery time.Closing conveyor - factory installed. Add 4 to 6 weeks to delivery time.Food approved infeed and discharge beltsInfeed product guide. Available in field retro kit form.Lower film cradle. Available in field retro kit form.Machine status beacon - Two (2) color (red - stop or fault, green- run)Mushroom insert PVC seal bars (Instead of Standard)Pneumatic hole punch. Available in field retro kit form. (Instead of STD Perforator wheel) for LDPEPrint registration. Available in field retro kit form.Additional print registration programming, per product configuration:Reverse flow (L to R). Call for delivery time.Sealstrip Peelwrap ApplicatorStainless steel finish, food grade belting (Instead of Standard) Olefin. Call for delivery time.UL/CSA approved main electrical cabinet480 Volt conversion - 480V/240V 1.5kVa, step-down transformer, single phase. Available in field retro kit form.Vertical Photo EyeLow Film Alert with 3 Color Machine Status Beacon6' belted infeed conveyor. Available in field retro kit form. Add 4 to 6 weeks to delivery time.6' lugged infeed conveyor. Available in field retro kit form. Add 4 to 6 weeks to delivery time.6' variable speed belted infeed conveyor with right angle indexer. Add 4 to 6 weeks to delivery time.11' belted infeed conveyor. Available in field retro kit form. Add 4 to 6 weeks to delivery time.10' lugged infeed conveyor. Add 4 to 6 weeks to delivery time.6' long by 2" high paper guides. Available in field retro kit form.10' long by 2" high paper guides. Available in field retro kit form.Model L18 Full Spare Parts KitModel L18 Minimal Spare Parts KitModel L18 Standard Spare Parts Kit
Seal Dimensions Seal Length
19 1/2 in
Seal Dimensions Seal Width
17 3/4 in
Specifications Compressed Air Requirements
80 psi | 0 to 5 scfm
Specifications Delivery Times
2 to 12 weeks depending on options
Specifications Film Roll Diameter
11 1/2 in
Specifications Film Roll Width
0 to 24 in
Specifications Film Type
Center Folded
Specifications Gross Shipping Weight
1170 lb

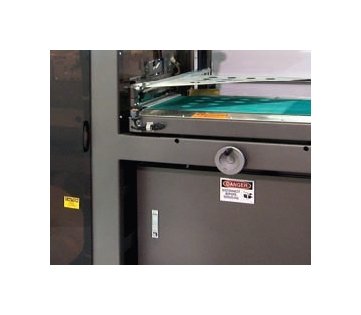

Specifications Guillotine Style Seal Head
A Guillotine style seal head provides consistent seal strength for all product profiles. Vertical movement using linear shafts, bearings and reciprocating chains, is proven to be a superior sealing method eliminating the scissor action and linkages associated with pivot style systems.
Specifications Height
1/4 to 6 in
Specifications Innovative Pinch Roller Design
An innovative pinch roller design gently pulls "raw" film ahead of seal bar. Film breaks are eliminated on even the lightest film gauges. Precise control of the film web reduces film width requirement for most products.
Specifications Length Flow Direction
4 to 18 1/2 in
Specifications Maximum Package Weight
25 lb
Specifications Maximum Packaging Speed
40 ppm based on 7" W x 4" L x 1" H Product
Specifications Other Film Specifications
"B" Wind | Sizing Formula: W + H (1" min.) + 3" = CF film width. For products over 3" high, use W + H + 4 = CF film width.
Specifications Stroke Limiting Adjustable Seal Height
A single adjustment provides a centered seal for best product appearance, while limiting seal head stroke for the fastest production speeds. A proprietary "Seal Height Calibration Sequence" measures seal head height and automatically determines proper seal head cushioning for all seal heights.
Specifications User Friendly Color Touchscreen Operator Interfac
Automatic L-Sealer includes user-friendly color touch screen operator interface.
Specifications User Friendly Control Panel
Automatic L-Sealer includes user-friendly control panel.
Specifications Variable Conveyor Speed
45 to 90 ft/min
Specifications Width Across Machine
1 1/2 to 15 in
