Automated Rotary Tower Stretch Wrapping Machine
Automated Rotary Tower Stretch Wrapping Machine
SKU:AUT-70125c
Efficient and reliable automated pallet wrapping machine for seamless wrapping operations with advanced safety features.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
Automated Rotary Tower Stretch Wrapping Machine
$18,999.00
Quantity: 1
Claim Your Seller Account
Automated Rotary Tower Stretch Wrapping Machine
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

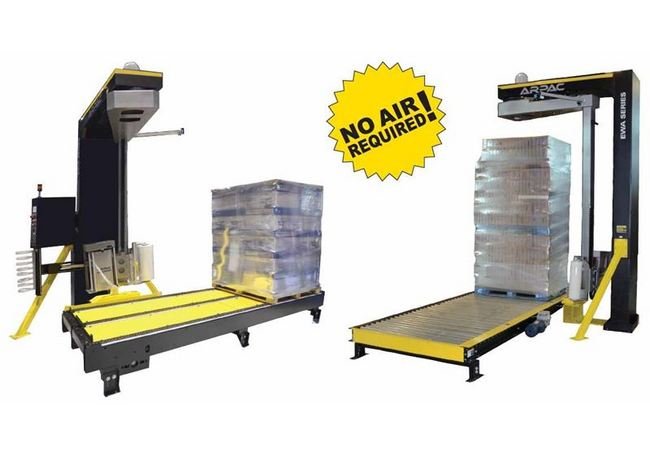

The Automated Rotary Tower Stretch Wrapping Machine by ARPACSTRETCH™ is a powerhouse of efficiency and reliability, offering seamless operation for pallet wrapping needs. With a load height range of 24 to 80 inches, maximum load diagonal clearance of 75 inches, and a robust load capacity of 4000 lbs, this machine excels in handling various pallet sizes. Featuring advanced safety measures like magnetic proximity switches and top film overwrap control, this machine ensures secure and precise wrapping. The durable steel construction, eco-friendly powder coating, and efficient film delivery system with EZ-Load® pre-stretch dispenser make it a top choice for industries requiring high-volume pallet wrapping with ease.
Product Specifications
Electrical Power Requirements Alternating Current Ac Voltage
120 V
Electrical Power Requirements Current
20 A
Electrical Power Requirements Frequency
60 Hz
Electrical Power Requirements Number Of Phase
1
Electrical Power Requirements Power
2.4 kW
Features Features

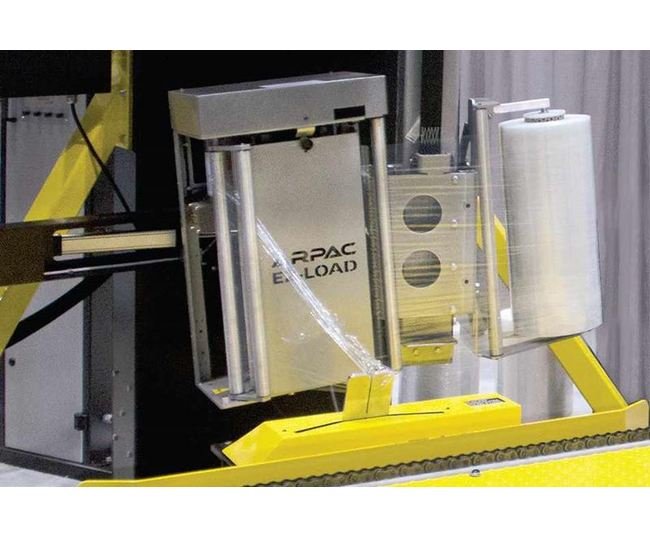

Machine Features Flashing safety beacon Adjustable top and bottom illuminated LED wrap counters Magnetic proximity switches in place of mechanical limit switches Top film overwrap control feature (TOC) Electronic film tension adjustment control on control panel Long-range photo eye for automatic load height sensing User-friendly push button operator control panel Built-in self-diagnostics Positive home position alignment End pallet stop included System Components Heavy-duty, welded steel construction (no plastic panels) designed for long life Eco-friendly, durable powder coating Up to 15 RPM rotating arm can deliver 25â55 loads per hour Dual V-belt drive rotating arm NEMA 3 commutator Conveyors Chain driven roller conveyor can support up to 4,000 lb. Three strand drag chain conveyor can support up to 3,000 lb. Integrated film clamp Automatic indexing Controls Hardware Allen-Bradley® power, control, and safety components Allen-Bradley® MicroLogix⢠PLC NEMA 12 electrical cabinet UL/CSA approved components Film Delivery System EZ-Load® film pre-stretch dispenser for 20" film rolls Dual anti-static film rollers with manufacturerâs lifetime warranty Film pre-stretch capability from 150 to 300% stretch (200% standard) Variable carriage speed up to 21 feet per minute Belt lift for quiet operation Dancer bar variable corner compensation Electronic film tension adjustment control
Note Note
Available with either drag chain or roller conveyor. Configurable right- or left-sided conveyor available to meet your specific requirements!
Options Options
Tower and arm extensions for wrapping loads exceeding standard machine capability 30" film delivery system Other NEMA rated control enclosures available Optional input voltages Cold and freezer packages available Free-standing control panel

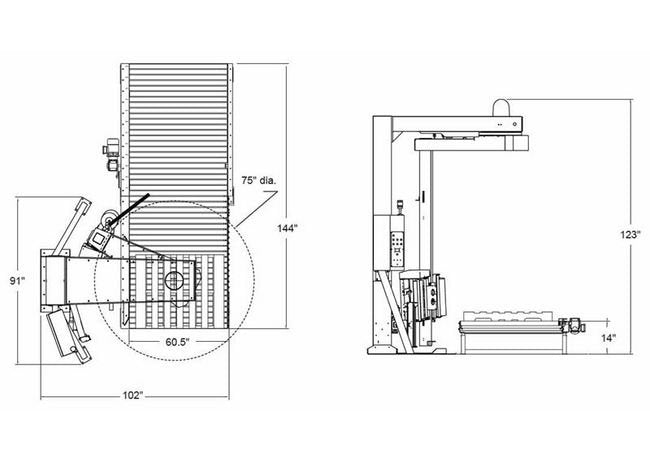

Specifications Height
123 in
Specifications Load Capacity
4000 lb
Specifications Load Height
24 to 80 in
Specifications Load Length
53 in
Specifications Load Width
53 in
Specifications Machine Length
87 in
Specifications Machine Width
91 in
Specifications Maximum Load Diagonal Clearance
0 to 75 in
Specifications Tower Speed
0 to 15 rpm
