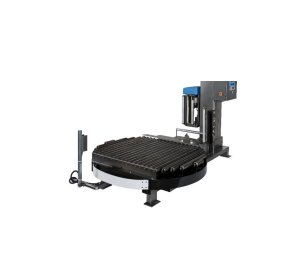

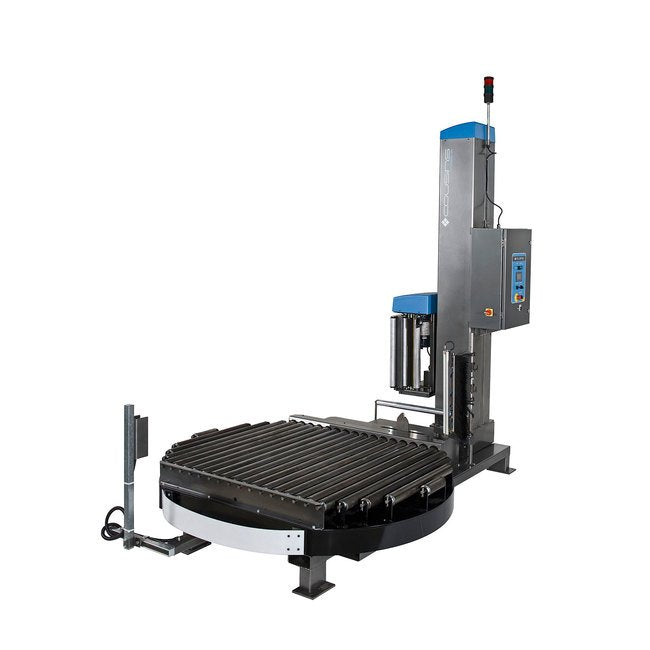

Automatic Customized Stretch Wrapping System Model 3300-CTA
Automatic Customized Stretch Wrapping System Model 3300-CTA
SKU:PAC-c50ed0
Advanced Automatic Stretch Wrapper - Electric film clamp, LCD interface, heavy-duty design. Ideal for high-capacity packaging needs.
Regular price
$17,999.00
Regular price
Sale price
$17,999.00
Unit price
per
Initiate Order
Automatic Customized Stretch Wrapping System Model 3300-CTA
$17,999.00
Quantity: 1
Claim Your Seller Account
Automatic Customized Stretch Wrapping System Model 3300-CTA
$17,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model 3300-CTA Conveyorized Automatic Customized Stretch Wrappers with Advanced Technology set the industry standard since 1994. Featuring electric actuated film clamp mechanism, Ni-chrome impulse hot wire film cut off, and LCD operator interface with diagnostics. With a maximum load capacity of 4000 lb and optimized film carriage design for consistent stretch, it ensures efficient and secure packaging. The tower design includes fully enclosed motors and a 5-year warranty on steel fabrications, meeting high durability standards for institutional procurement.
Product Specifications
Additional Information Additional Information

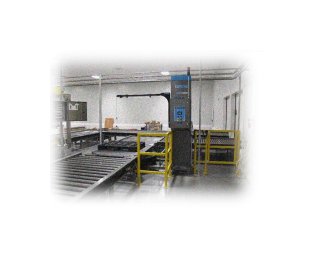

Film Carriage - Less film slippage means more consistent stretch and the "sticky" side of the film will always be against both the rubber rollers and the load where it belongs..All Electric - no pneumatic lines or noisy air compressors required.System Configuration - Designed to be installed with existing product flow and conveyor layout design. Whether In-line or off-line, the automation package is designed to be in-line with conveyors using interface relays/logic or off-line standalone system using a wireless remote.
Controls Controls
LCD operator interface with diagnostics.Separate up/down spiral speed controls.3 Separate wrap programs.Selectable reduced film tension parameters for wrapping top and/or bottom of light loads.Emergency stop button.NEMA 123 year warranty on components.
Conveyors Conveyors
Alternating Current (AC) Drives.
Conveyors Conveyors Standard Passline Height
16.5
Conveyors Effective Roller Width
50 in
Conveyors Rollers Diameter On 3 Inch In Centers
2.5 in
Film Carriage Elevator Film Carriage Elevator
Super Rapid Thread II⢠20" capacity pre-stretch film carriage.Special Film Threading Device - Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside on the load.AC variable speed motor.33% to 313% fixed stretch capability.Carriage Descent Safety Shut-Off Device.Superior film-to-roller contact area.Lifetime warranty on pre-stretch rollers.
Load Capacity Maximum Load Capacity
4000 lb
Load Capacity Maximum Load Height
75 in
Load Capacity Maximum Load Length
48 in
Load Capacity Maximum Load Width
48 in
Load Capacity Minimum Load Height
24 in
Load Capacity Note For Load Capacity
Larger load size options are available.
Production Speed Note For Production Speed
Depending on load sizes and number of wraps.
Production Speed Production Speed
40 loads/hr
Tower Design Tower Design
Fully enclosed & guarded motors.No exposed cables.Heavy-duty formed/structural steel.Electro-static powder coated paint finish.5 year warranty on steel fabrications.
