The medical gas manifold shall be Ohio® Medical Healthcare® series. The manifold shall comply with the latest edition of NFPA® 99.The manifold shall provide an uninterrupted supply of gas to the pipeline at a constant pressure. The manifold shall permit automatic switchover for the “in use” (primary) bank of cylinders to the “reserve” (secondary) bank of cylinders.
Product Specifications
Additional Information

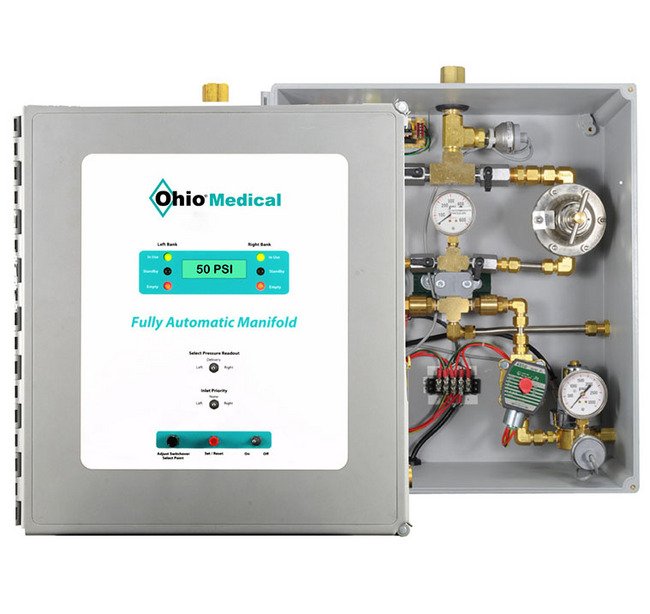

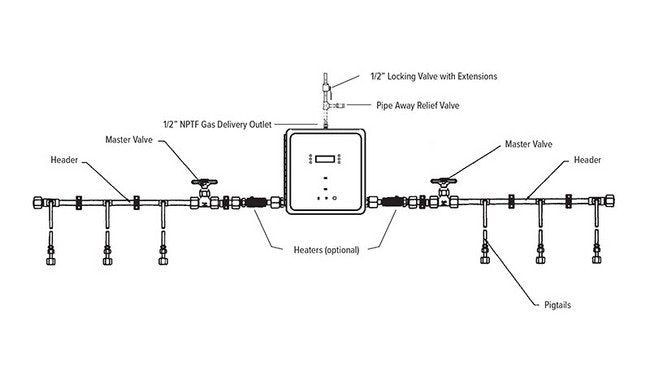

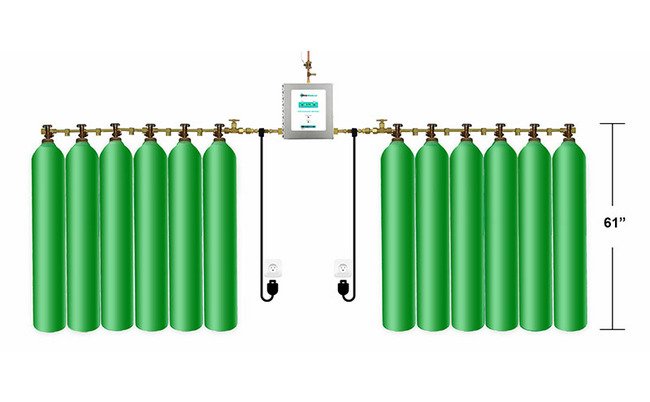

The manifold shall have a NEMA 4x enclosure allowing the manifold to be mounted outdoors in a semi-protected environment (0° - 140°F). The manifold shall be equipped with an internal power supply module, header bars/cylinder connections, master shut off valves and optional external heaters for Nitrous Oxide (N2O) and Carbon Dioxide (CO2) service.The pressure control cabinet shall contain dual pressure regulators and switches that assure an uninterrupted, regulated flow of gas to the pipeline. The cabinet shall have a digital pressure display and analog three pressure gauges, one for each supply side and one for the pipeline delivery pressure. A group of indicator lights shall be used to indicate the status of the left and right cylinder banks. “In Service” is indicated by the green light, and the “Reserve” cylinder bank is indicated by the yellow “Ready to Use” light. A red “Replace Cylinder” light indicates a depleted cylinder bank. The manifold shall be equipped with a left or right bank inlet priority switch. An external switch over setting module shall be provided.The control cabinet shall be equipped with a leak detection alert, in the event the reserve cylinder bank decreases by 25% from the initial standby pressure. When this occurs, the standby status light and the empty status light will blink indicating that a leak has been detected. The unit shall include a self diagnostic testing feature to check the internal inlet and delivery pressure transducer sensors. During this test if a fault is found the digital display will read “ERROR” Right, Left, or Delivery depending on where the fault was generated.Dry contacts are provided in the internal alarm terminal strip for connection to a remote alarm to signal when the reserve bank (secondary) is in use. No manual resetting is required when the bank has been replaced with new cylinders and re-pressurized, the red light goes off and the yellow “Ready to Use” light comes on and the replaced bank is now the reserve bank.The header bars shall be modular in design, allowing for future expansion. Each inlet port shall be equipped with an individual check valve and each brass header bar shall include a master shutoff valve to shut off the gas in emergency situations. Cylinder connections shall have a stainless steel mesh covering (Oxygen manifolds shall be equipped with copper pigtails.) and be flexible to facilitate cylinder alignment with the header bar and include gas specific CGA fittings on each end.Piping regulators and control switchover components shall be cleaned for oxygen service.

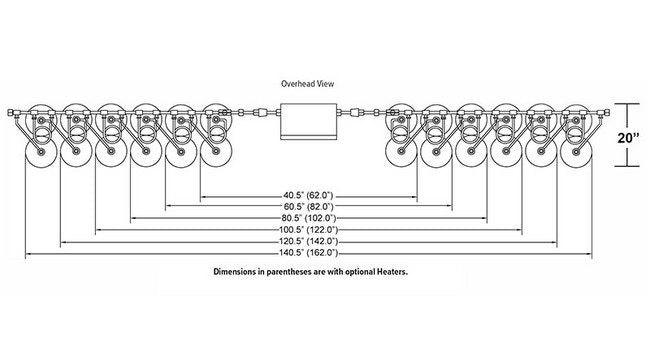

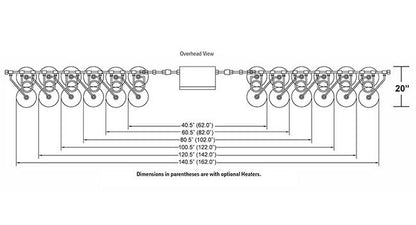

Cabinet Dimensions Cabinet Depth
10.5 in
Cabinet Dimensions Cabinet Height
18 in
Cabinet Dimensions Cabinet Width
16 in
Features And Benefits
Digital LCD Pressure DisplayNEMA 4x EnclosureAutomatic Leak DetectionAutomatic Transducer Diagnostic Testing
Manifold Ordering Manifold Installation Kits

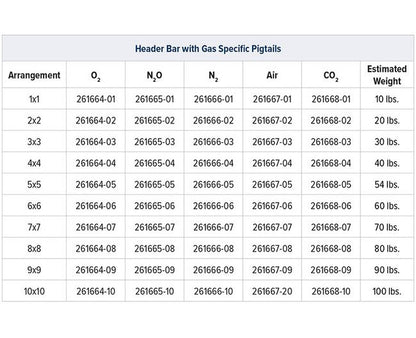

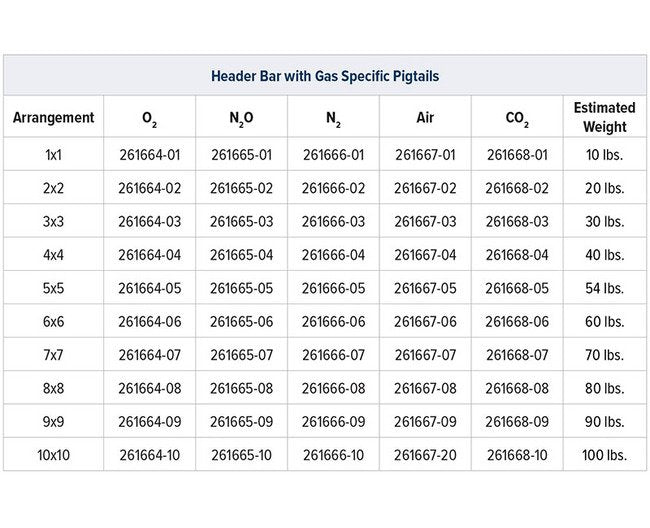

Item # - 263463Description - Installation Kit for O2, N2O, Air & CO2Installation Kit IncludesItem # - 232600Description - 75 psi Relief ValveItem # - 232602Description - 1/2" Pipe AdapterItem # - 261600-05Description - 1/2" Locking Source ValveItem # - 263464Description - Installation Kit for N2Installation Kit IncludesItem # - 232604Description - 250 psi Relief ValveItem # - 232602Description - 1/2" Pipe AdapterItem # - 261600-05Description - 1/2" Locking Source Valve
Manifold Ordering Multi Voltage Digital Manifold Cabinet Only
Item # - 263433Description - O2 (50 lbs)Item # - 263435Description - N2O (50 lbs)Item # - 263437Description - N2 (50 lbs)Item # - 263439Description - Air (50 lbs)Item # - 263441Description - CO2 (50 lbs)
Manifold Ordering Optional Heater Kit For Nitrous Oxide N2o And
Item # - 263431Description - 115 V Heater, USA, 2 RequiredItem # - 263409Description - 220 V Heater, Other, 2 Required
Note
Equipment is manufactured in the USA and produced in an ISO 9001 registered facility.
Specifications Alternating Current Ac Input Voltage
90 to 264 V
Specifications Designed To
American National Standards Institute (A-13.1, B.57-1) | Compressed Gas Association (V-1, E-1, E-3, E-4, G-1) | National Fire Protection Association (NFPA® 99 and 51)
Specifications Industry Focus
Medical and Dental
Specifications Media
Gas
Specifications Product Includes
UL / CSA / CE / ISO 5175, BS 6158 / EN 730 (BAM / DIN) / AS 4603 - Components
