Efficiently seal a variety of films with the Automatic Value Series 22 Inch L-Sealer from Eastey. Durable construction, easy operation, and consistent seals make it ideal for entry-level and intermediate applications.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Automatic Value Series 22 Inch L-Sealer - Packaging Equipment
$8,999.99
Quantity: 1
Claim Your Seller Account
Automatic Value Series 22 Inch L-Sealer - Packaging Equipment
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

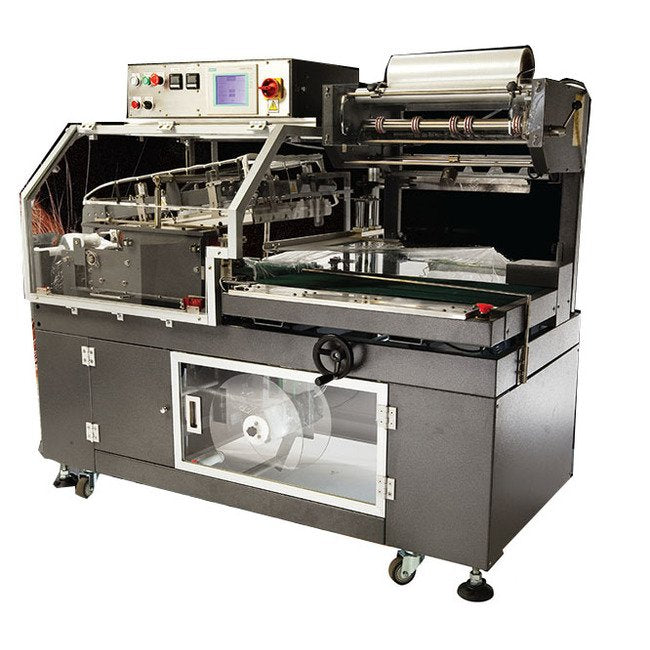

The Automatic Value Series 22 Inch L-Sealer from Eastey is a robust and efficient solution designed for entry-level and intermediate applications. Built to handle a variety of films including polyolefin, polyethylene, and PVC, this machine features a durable all-welded main frame, motorized seal height adjustment, and a hot knife seal bar for consistent seals. With features like a pin perforator for air evacuation, motorized seal height adjustment, and an HMI controller for easy operation, this L-Sealer offers reliability and quality at a competitive price point.
Product Specifications
Additional Information Additional Information
PROVEN RELIABILITY, EFFICIENT DESIGNDesigned specifically for entry-level or intermediate applications that require simple operation, small footprint, or a limited budget, Eastey's Value-Series Automatic L-Sealers will handle the day to day abuse required for automatic sealing.
Conveyor Height Maximum Conveyor Height
34 in | 86 cm
Conveyor Height Minimum Conveyor Height
31.5 in | 80 cm
Key Features Key Features

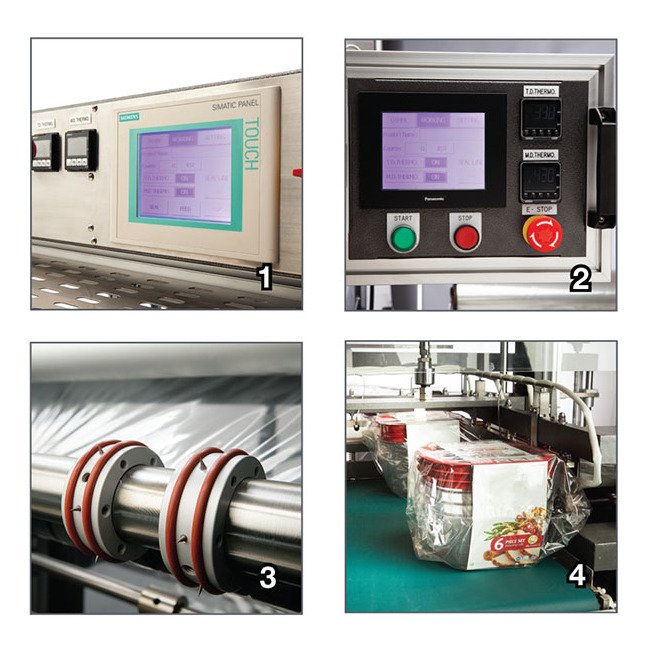

VSA1721 HMIUser interface features simple menus for easy operation and adjustments required for a variety of applicationsPin PerforatorAdjustable pin perforator provides air evacuation in the film or clean and tight film shrinkageRoller Exit TableProvides a smooth transition from the seal area to the shrink tunnel

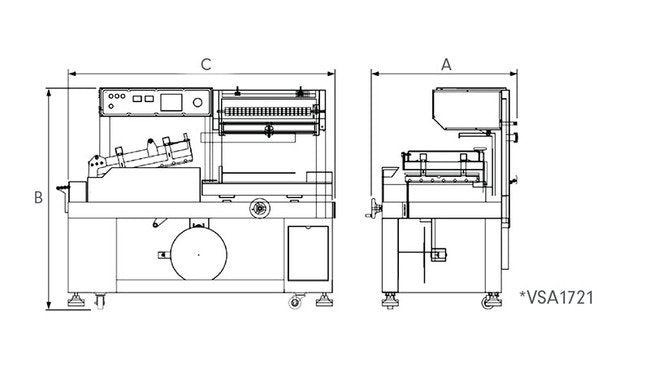

Machine Dimensions Machine Height B
58 in | 147 cm
Machine Dimensions Machine Length C
72 in | 182 cm
Machine Dimensions Machine Width A
45 in | 114 cm
Specifications Film Width
22 in | 55 cm
Specifications Maximum Film Roll Outside Diameter
0 to 12 in
Specifications Maximum Film Width
0 to 22 in
Specifications Pressure
80 psi
Specifications Seal Length
21 in
Specifications Seal Width
17 in
Specifications Shipping Weight
1100 lb | 498 kg
Specifications Weight
1000 lb | 453 kg
Standard Features Standard Features
Designed to seal most polyolefin, polyethylene, and PVC shrink filmAll-welded main frame from 12 gauge steelNormal speed infeed and outfeed conveyorsHigh speed with product indexingMotorized seal height adjustment for various product sizesSeal head equipped with pneumatic air cylinder for automatic sealingHot knife seal bar for consistent and clean sealConsistent pressure across seal barAutomatic cycle timing with adjustable dwell timeHMI controller with simple menus for easy operationFilm tracking wheels keep film in placeMultiple pin perforator provides precise air evacuationHeavy duty casters for transportation within plantLevelling legs provide sturdy base once in placeVSA1721 features a 17"W x 21"L seal areaScrap unwind automatically wraps up the scrap film left from the sealerEasy to use design requires minimal training and maintenanceAvailable in 220v
Standard Power Current
10 A
Standard Power Phase
1
Standard Power Voltage
220 V
