Autonics 12V DC Timer -10 to 55°C Ambient Temp
Autonics 12V DC Timer -10 to 55°C Ambient Temp
SKU:PRO-f1843e
Precision Autonics 12V DC Timer for industrial operations with versatile output options and CE/cULus approval.
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Initiate Order
Autonics 12V DC Timer -10 to 55°C Ambient Temp
$29.95
Quantity: 1
Claim Your Seller Account
Autonics 12V DC Timer -10 to 55°C Ambient Temp
$29.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

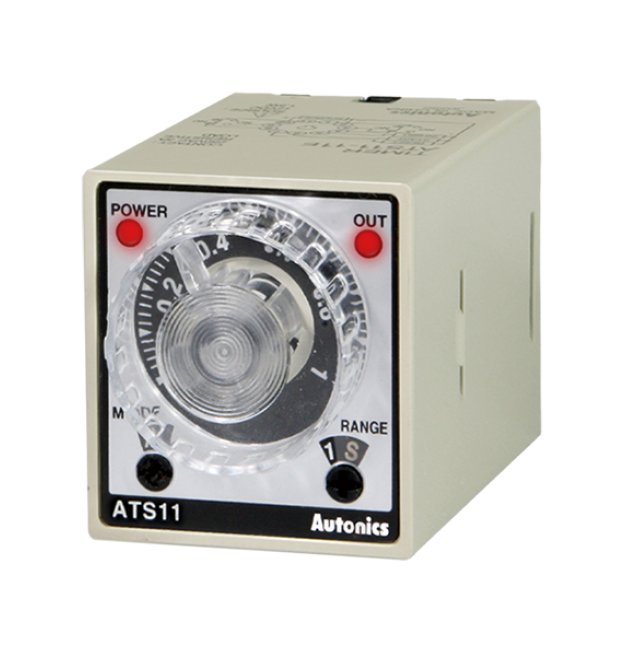

The Autonics 12 Volt DC Voltage Timer is designed for precise time-setting operations in industrial environments. With a setting range from 0.1 second to 10 hours, this timer offers versatility in controlling operations. It features various output operations such as Flicker, Interval, and Signal Delays, suitable for different applications. Approved by CE and cULus, this Analog timer meets European and North American standards. With a compact design, robust build, and no-voltage input method, it is ideal for controllers in diverse settings.
Product Specifications
Accessories Accessories
Bracket
Function Function
Signal on Start
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
70 g
Specifications Approximate Weight
95 g
Specifications Contact Type
Instantaneous Single Pole Double Throw (SPDT) (1C) | Time Limit Single Pole Double Throw (SPDT) (1C)
Specifications Control Output
Instantaneous Single Pole Double Throw (SPDT) (1C): 1 | Time-Limit Single Pole Double Throw (SPDT) (1C): 1
Specifications Control Time Setting Range
0.1 Second to 10 Hour
Specifications Direct Current Dc Voltage
12 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Height
42 mm
Specifications List Price
29.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Signal Off Delay | Signal On Delay | Signal On-Off Delay
Specifications Setting Range
0.1 to 1 Hour | 0.1 to 1 Minute | 0.1 to 1 Second | 1 to 10 Hour | 1 to 10 Minute | 1 to 10 Second
Specifications Signal Input Method
No-Voltage Input (Negative Positive Negative (NPN))
Specifications Terminal
11-Pin Plug
Specifications Time Operation
Signal On Start
Specifications Type
Analog
Specifications Weight
0.56 lb
Specifications Width
38 mm
