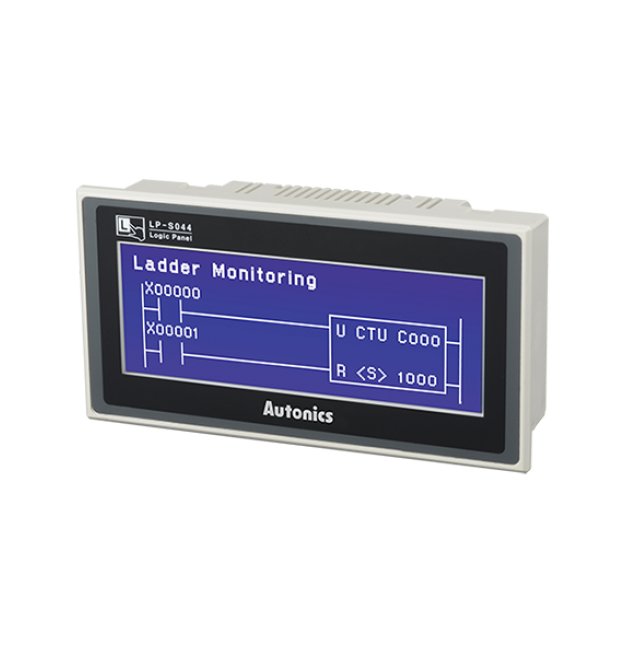

Autonics 4.4'' HMI Display Panel
Autonics 4.4'' HMI Display Panel
SKU:PRO-75a933
Enhance control efficiency with the Autonics 4.4'' HMI Display Panel, featuring 112.8 x 37.6 mm display area, touch-sensitive design, RS232C/RS422 interfaces, and CE/KC certifications.
Regular price
$510.95
Regular price
Sale price
$510.95
Unit price
per
Initiate Order
Autonics 4.4'' HMI Display Panel
$510.95
Quantity: 1
Claim Your Seller Account
Autonics 4.4'' HMI Display Panel
$510.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience seamless interface control with the Autonics 4.4'' HMI Display Panel. This human-machine interface features a 112.8 x 37.6 mm display area, 384 kB graphic drawing memory, and supports 12 to 24V DC voltage. With a touch-sensitive design, RS232C and RS422 interfaces, and IP65F protection, it ensures reliable performance in industrial environments. The panel is equipped with GP Editor and SmartStudio software, Real Time Clock, and supports multiple languages. Ideal for controllers, this HMI meets CE and KC certifications, offering superior control performance and user-friendly operation.
Product Specifications
Accessories Accessories
Fixing Bracket: 4, Rubber Waterproof Ring, Battery (Included)
Display Specifications Display Area
112.8 x 37.6 mm
Display Specifications Display Color
Mono (Blue, White)
Display Specifications Display Resolution
240 x 80 px
Display Specifications Display Type
4.4 Inch Super-Twisted Nematic (STN) Blue Negative
Graphic Drawing Performance Graphic Language
Chinese | English | Japanese | Korean | Portuguese | Russian | Vietnamese
Graphic Drawing Performance Graphic Text
High resolution display up to 1590 letters (6Ã8 font) 6x8, 8x8 ASCII character, high definition numbers8x16 ASCII characters, 16Ã16 character by each country (1-8 times bigger for width, 0.5-5 times bigger for height)
Graphic Drawing Performance Number Of User Screen
500 Pages
Graphic Drawing Performance Touch Switch Height
4 in
Graphic Drawing Performance Touch Switch Width
15 in
Human Machine Interface Hmi Connection Type
Ribbon Cable Connector
Human Machine Interface Hmi Item
Logic Panel
Human Machine Interface Hmi Monitor Size
4.4 in
Human Machine Interface Hmi Serial Interface
RS232C | RS422 (1 Each)
Specifications Approval
European Conformity (CE) | Korean Certification (KC)
Specifications Approximate Net Weight
284 g
Specifications Approximate Weight
413 g
Specifications Average Control Performance Processing Time
6 to 7 ms/steps
Specifications Control Performance Application Command
220
Specifications Control Performance Basic Command
28
Specifications Control Performance Program Capacity
8K Steps
Specifications Dedicated Software
GP Editor (Drawing Program) | SmartStudio (Logic Program)
Specifications Direct Current Dc Voltage
12 to 24 V
Specifications Display Length
145 mm
Specifications Display Width
75 mm
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
0 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Graphic Drawing Memory
384 kB
Specifications Input Output Connector Type
Ribbon Cable
Specifications List Price
510.95 USD
Specifications Negative Positive Negative Npn Input Configuratio
16 Point
Specifications Negative Positive Negative Npn Output Configurati
16 Point
Specifications Protection Structure
Ingress Protection (IP) 65F (Front Panel)
Specifications Real Time Controller
Real Time Clock (RTC) Embedded
Specifications Rs232c Interface
1 EA
Specifications Rs422 Interface
1 EA
Specifications Touch Method
Pressure Sensitive Type
