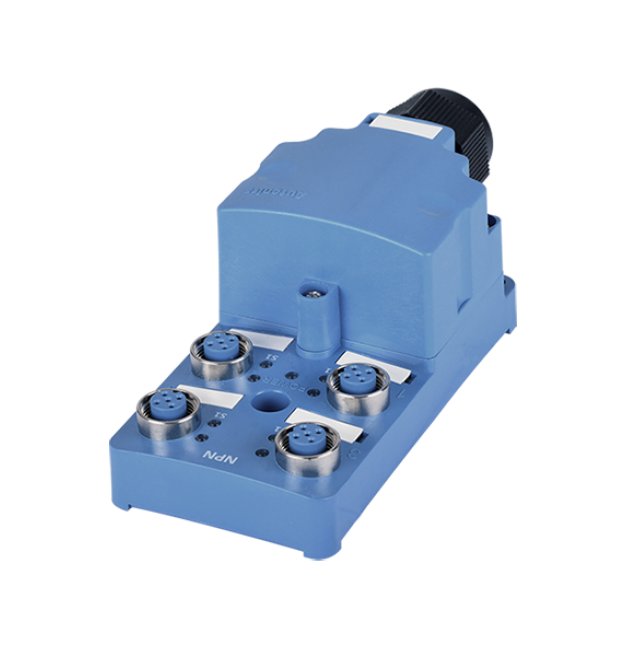

Autonics 4-Port Distribution Box with NPN Input Logic
Autonics 4-Port Distribution Box with NPN Input Logic
SKU:PRO-98bbb7
Reliable Autonics 4-Port Distribution Box with NPN Input Logic for 12-24V DC applications. CE compliant with IP52/67 protection.
Regular price
$79.95
Regular price
Sale price
$79.95
Unit price
per
Initiate Order
Autonics 4-Port Distribution Box with NPN Input Logic
$79.95
Quantity: 1
Claim Your Seller Account
Autonics 4-Port Distribution Box with NPN Input Logic
$79.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics 4-Port Distribution Box features a robust Negative-Positive-Negative (NPN) input logic design, suitable for 12 to 24V DC voltage applications. With 4 ports and a 7A total rated current capacity, this distribution box ensures reliable signal distribution. It meets European Conformity (CE) standards and offers IP52 and IP67 protection ratings for enhanced durability. The spring terminal connection method and high-quality materials like PBT and PC guarantee long-term performance in diverse environments.
Product Specifications
Specifications Approval
European Conformity (CE)
Specifications Box Type
Distribution
Specifications Case Color
Blue
Specifications Case Material
Polybutylene Terephthalate (PBT) (G15%)
Specifications Connection Method For External Signal
Spring Terminal Type
Specifications Cover Material
Polybutylene Terephthalate (PBT) (G15%)
Specifications Cover Nut Material
Polyamide 6 (G15%)
Specifications Direct Current Dc Voltage
12 to 24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-25 to 75 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-30 to 80 ºC
Specifications Including
Hood Cover
Specifications Input Logic
Negative-Positive-Negative (NPN)
Specifications List Price
79.95 USD
Specifications Minimum Connection Life Cycle Operations
200
Specifications Name Plate Material
Polycarbonate (PC)
Specifications Number Of M12 Connector Pins
5
Specifications Number Of Ports
4
Specifications Output Specification
1-Signal (Direct Current (DC) 3-Wire Type)
Specifications Protection Structure
Ingress Protection (IP) 52 (Protection Cover) | Ingress Protection (IP) 67 (Waterproof Cover)
Specifications Rated Current Per Port
2 A
Specifications Rated Current Per Signal
2 A
Specifications Total Rated Current
7 A
Specifications Unit Weight
140 g
Specifications Weight
0.2 lb
