Autonics 8 Digit LCD Totalized Counter
Autonics 8 Digit LCD Totalized Counter
SKU:PRO-60fb75
Reliable Autonics 8 Digit LCD Totalized Counter for precise counting with versatile modes and durable design.
Regular price
$58.95
Regular price
Sale price
$58.95
Unit price
per
Initiate Order
Autonics 8 Digit LCD Totalized Counter
$58.95
Quantity: 1
Claim Your Seller Account
Autonics 8 Digit LCD Totalized Counter
$58.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

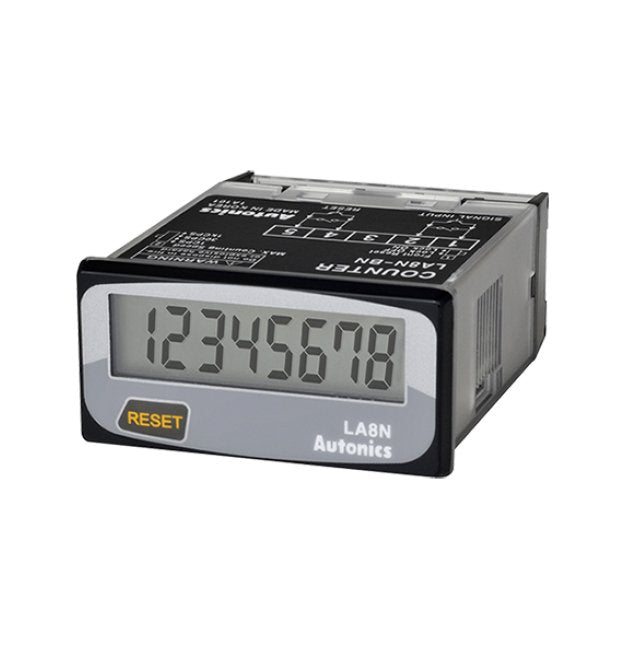

The Autonics 8 Digit Liquid Crystal Display (LCD) Totalized Counter is a versatile and reliable counting solution designed for precision and durability. With an 8-digit 7-segment LCD display and counting speed options of 1 cps, 1k cps, and 30 cps, this counter offers flexibility for various applications. It features selectable count modes including Count Down, Count Up, and Count Up/Down, along with a front reset key for easy operation. The built-in battery provides over 7 years of power, and the IP66 protection rating ensures resistance to environmental factors. Approved by European Conformity (CE) and cULus, this counter is a dependable choice for industrial and commercial settings.
Product Specifications
Accessories Accessories
Mounting Bracket | Rubber Waterproof Ring
Note Note
External setting switch: SW1 is the front panel RESET key enable/disable setting switch.External setting switch: SW2 is the max. counting speed setting switch.External setting switch: SW3 is the decimal point setting switch.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
50 g
Specifications Approximate Weight
96 g
Specifications Control Output
Indicator
Specifications Counter Operation Method
Count Down | Count Up | Count Up/Down
Specifications Display Method
8-Digit 7-Segment Liquid Crystal Display (LCD)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Input Power
Built-In Battery (Over 7 Years)
Specifications Input Reset Method
No-Voltage Input Negative Positive Negative (NPN)
Specifications Input Signal Method
No-Voltage Input Negative Positive Negative (NPN)
Specifications List Price
58.95 USD
Specifications Maximum Counting Speed
1 cps | 1k cps | 30 cps
Specifications Minimum Signal Width
20 ms
Specifications Protection Structure
Ingress Protection (IP) 66 (Front Panel)
Specifications Terminal
Terminal Block
Specifications Weight
0.22 lb
