Autonics Digital AC/DC Voltage Timer
Autonics Digital AC/DC Voltage Timer
SKU:PRO-c3ebc0
Versatile 1/16 DIN timer with 24-240 VAC/DC range, Countdown, Count Up, and multiple delay functions. CE and UL approved.
Regular price
$92.95
Regular price
Sale price
$92.95
Unit price
per
Initiate Order
Autonics Digital AC/DC Voltage Timer
$92.95
Quantity: 1
Claim Your Seller Account
Autonics Digital AC/DC Voltage Timer
$92.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

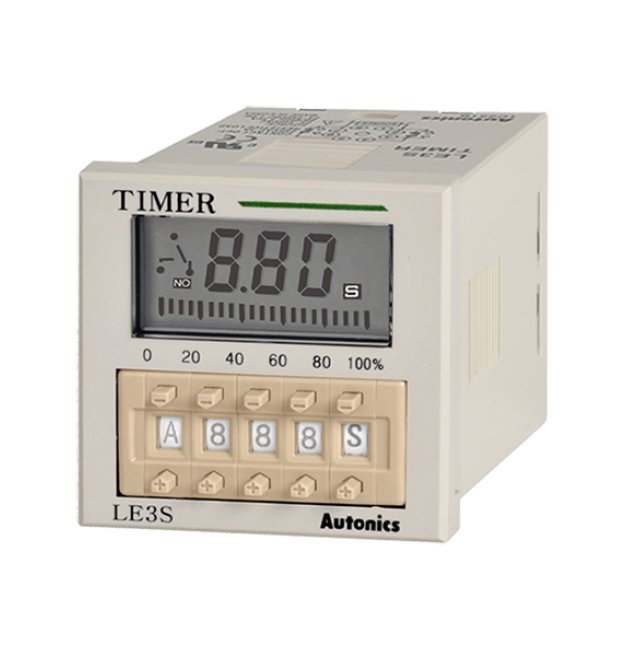

The Autonics Digital AC/DC Voltage Timer is a versatile 1/16 DIN timer designed for precision time control in industrial settings. With a wide voltage range of 24-240 VAC/DC and multiple output operation modes, this timer offers flexibility and accuracy. Its 3-Digit 7-Segment LCD display ensures clear visibility, while the Countdown, Count Up, and various delay functions cater to diverse timing needs. Approved for European Conformity (CE) and Underwriters Laboratory (UL) recognition, this timer meets international safety and quality standards.
Product Specifications
Accessories Accessories
Bracket
Note Note
Sockets (PG-08, PS-08(N), PS-M8) are sold separately.The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.The weight includes packaging. The weight in parenthesis is for unit only.
Specifications Alternating Current Ac Voltage
24 to 240 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory Recognized Component (cRUus)
Specifications Approximate Minimum Signal Width For Inhibit
20 ms
Specifications Approximate Minimum Signal Width For Reset
20 ms
Specifications Approximate Minimum Signal Width For Start
20 ms
Specifications Approximate Weight
100 g
Specifications Control Output Relay
Time-Limit Single Pole Double Throw (SPDT) (1C): 1
Specifications Direct Current Dc Voltage
24 to 240 V
Specifications Display Method
3-Digit 7-Segment Liquid Crystal Display (LCD)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications List Price
92.95 USD
Specifications Operation Method
Count Down | Count Up
Specifications Output Operation
Flicker | Integration Time | Interval Delay | Off Delay | On Delay | One-Shot Out Flicker | On-Off Delay
Specifications Setting Range
0 Hour 01 Minute to 9 Hour 59 Minute | 0 Minute 01 Second to 9 Minute 59 Second | 0.01 Second to 9.99 Second | 0.1 Hour to 99.9 Hour | 0.1 Minute to 99.9 Minute | 0.1 Second to 99.9 Second | 1 Hour to 999 Hour | 1 Minute to 999 Minute | 1 Second to 999 Second | 10 Hour to 9990 Hour
Specifications Signal Input Method
No-Voltage Input (Negative Positive Negative (NPN))
Specifications Terminal
8-Pin Plug
Specifications Time Operation
Signal On Start
Specifications Weight
0.2 lb
