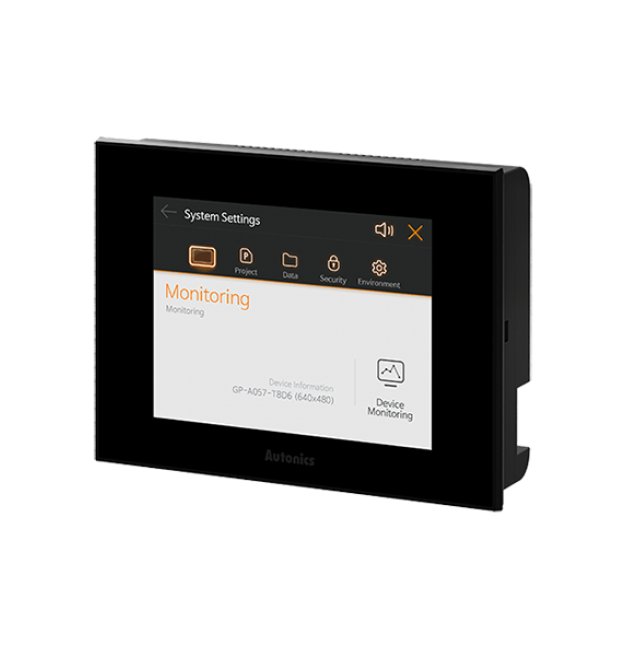

Autonics HMI 115.2 x 86.4mm Display, 24V DC Voltage
Autonics HMI 115.2 x 86.4mm Display, 24V DC Voltage
SKU:PRO-ef3c65
Experience top-notch control with Autonics HMI 115.2 x 86.4mm Display, featuring 24V DC Voltage and advanced interface options.
Regular price
$436.95
Regular price
Sale price
$436.95
Unit price
per
Initiate Order
Autonics HMI 115.2 x 86.4mm Display, 24V DC Voltage
$436.95
Quantity: 1
Claim Your Seller Account
Autonics HMI 115.2 x 86.4mm Display, 24V DC Voltage
$436.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics HMI 115.2 x 86.4mm Display offers a cutting-edge Human-Machine Interface solution for industrial control systems. With a Graphic Drawing Memory of 64 MB and a Pressure Sensitive Touch Method, this HMI ensures intuitive user interaction. It features multiple interface options including RS232C, Ethernet, USB, and RS422 for seamless connectivity. Designed with a 24V DC Voltage and IP65 protection, it meets European Conformity (CE) and Korean Certification (KC) standards, making it ideal for a wide range of applications.
Product Specifications
Display Specifications Display Area
115.2 x 86.4 mm
Display Specifications Display Color
262,144
Display Specifications Display Resolution
640 x 480 px
Display Specifications Display Type
Thin Film Transistor (TFT) Color Liquid Crystal Display (LCD)
Graphic Drawing Performance Graphic Language
English | Korean
Graphic Drawing Performance Graphic Text
Bitmap and Vector Font
Graphic Drawing Performance Number Of User Screen
100 Pages
Specifications Approval
European Conformity (CE) | Korean Certification (KC)
Specifications Approximate Net Weight
489 g
Specifications Approximate Weight
644 g
Specifications Dedicated Software
atDesigner
Specifications Direct Current Dc Voltage
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
0 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Ethernet Interface
Institute of Electrical and Electronics Engineers (IEEE) 802.3(U), 10/100Base-T
Specifications Graphic Drawing Memory
64 MB
Specifications List Price
436.95 USD
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel, International Electrotechnical Commission (IEC) Standard)
Specifications Real Time Controller
Real Time Clock (RTC) Embedded
Specifications Rs232c Interface
1 EA
Specifications Rs422 Interface
1 EA
Specifications Touch Method
Pressure Sensitive Type
Specifications Type
Human-Machine Interface (HMI)
Specifications Universal Serial Bus Usb Device Interface
1 EA
Specifications Universal Serial Bus Usb Host Interface
1 EA
Specifications Weight
0.2 lb
