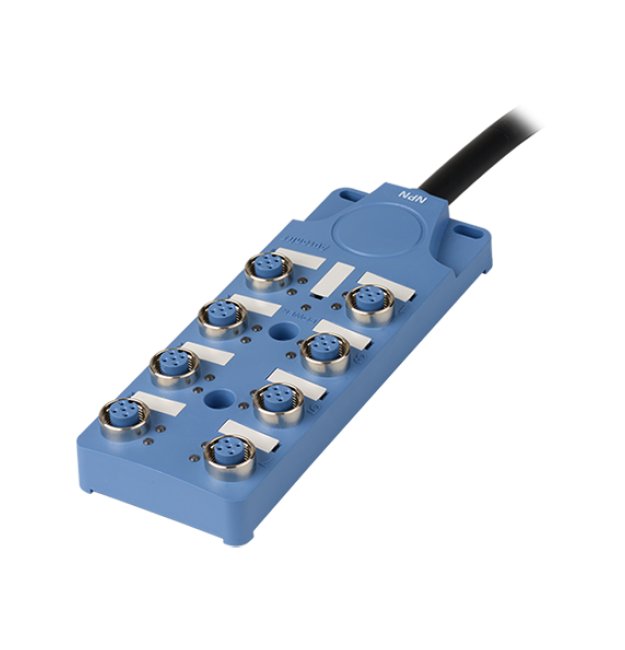

Autonics NPN Input Logic Distribution Box - 8 Ports, 12-24V DC
Autonics NPN Input Logic Distribution Box - 8 Ports, 12-24V DC
SKU:PRO-040e18
Reliable Autonics NPN Distribution Box - 8 Ports, 12-24V DC, CE Approved
Regular price
$166.95
Regular price
Sale price
$166.95
Unit price
per
Initiate Order
Autonics NPN Input Logic Distribution Box - 8 Ports, 12-24V DC
$166.95
Quantity: 1
Claim Your Seller Account
Autonics NPN Input Logic Distribution Box - 8 Ports, 12-24V DC
$166.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics NPN Input Logic Distribution Box is a reliable solution for signal distribution in industrial settings. With 8 ports supporting Negative-Positive-Negative logic and Input Voltage of 12-24V DC, this box ensures seamless connectivity. It boasts a durable construction with features like IP52/67 protection, CE approval, and a wide operating temperature range (-25 to 75ºC) for dependable performance in diverse environments. Meet your connectivity needs efficiently with this high-quality Distribution Box from Autonics.
Product Specifications
Specifications Approval
European Conformity (CE)
Specifications Box Type
Distribution
Specifications Cable Length
5 m
Specifications Case Color
Blue
Specifications Case Material
Polybutylene Terephthalate (PBT) (G15%)
Specifications Connection Method For External Signal
Cable Type
Specifications Direct Current Dc Voltage
12 to 24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-25 to 75 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-30 to 80 ºC
Specifications General Cable Color
Black
Specifications General Cable Material
Polyvinyl Chloride (PVC)
Specifications Input Logic
Negative-Positive-Negative (NPN)
Specifications List Price
166.95 USD
Specifications Maximum Leakage Current
0.5 mA
Specifications Minimum Connection Life Cycle Operations
200
Specifications Name Plate Material
Polycarbonate (PC)
Specifications Number Of M12 Connector Pins
5
Specifications Number Of Ports
8
Specifications Output Specification
1/2-Signal (Direct Current (DC) 4-Wire Type)
Specifications Protection Structure
Ingress Protection (IP) 52 (Protection Cover) | Ingress Protection (IP) 67 (Waterproof Cover)
Specifications Rated Current Per Port
4 A
Specifications Rated Current Per Signal
2 A
Specifications Total Rated Current
10 A
Specifications Unit Weight
1260 g
Specifications Weight
0.2 lb
