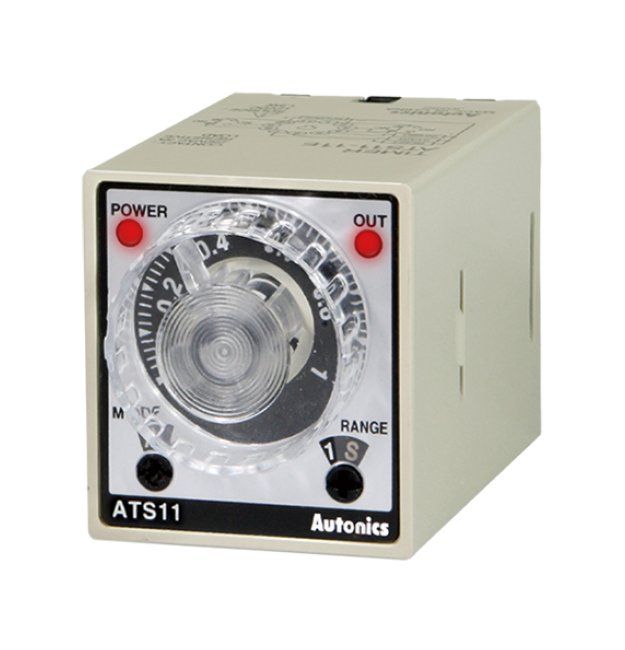

Autonics Small Analog Timer - 6-Mode, Multi-Range
Autonics Small Analog Timer - 6-Mode, Multi-Range
SKU:PRO-f017c4
Versatile Autonics Analog Timer with 6 Modes & Multi-Range: 0.3 Sec-30 Hours, 2 SPDT, CE/cULus Listed
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Initiate Order
Autonics Small Analog Timer - 6-Mode, Multi-Range
$29.95
Quantity: 1
Claim Your Seller Account
Autonics Small Analog Timer - 6-Mode, Multi-Range
$29.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics Small Analog Timer is a versatile time-setting device designed for precise control in various applications. With 6 modes and multi-range capabilities from 0.3 seconds to 30 hours, this timer offers flexibility and accuracy. It features 2 SPDT outputs, operating with 100-240VAC or 24-240 VDC. Approved by CE and cULus, it ensures reliable performance in temperatures ranging from -10 to 55 ºC. This analog timer is compact, measuring 38mm wide and 42mm high, making it ideal for space-constrained installations.
Product Specifications
Accessories Accessories
Bracket
Function Function
Signal on Start
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
70 g
Specifications Approximate Weight
95 g
Specifications Contact Type
Instantaneous Single Pole Double Throw (SPDT) (1C) | Time Limit Single Pole Double Throw (SPDT) (1C)
Specifications Control Output
Instantaneous Single Pole Double Throw (SPDT) (1C): 1 | Time-Limit Single Pole Double Throw (SPDT) (1C): 1
Specifications Control Time Setting Range
0.3 Second to 30 Hour
Specifications Direct Current Dc Voltage
24 to 240 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
42 mm
Specifications List Price
29.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Signal Off Delay | Signal On Delay | Signal On-Off Delay
Specifications Setting Range
0.3 to 3 Hour | 0.3 to 3 Minute | 0.3 to 3 Second | 3 to 30 Hour | 3 to 30 Minute | 3 to 30 Second
Specifications Signal Input Method
No-Voltage Input (Negative Positive Negative (NPN))
Specifications Terminal
11-Pin Plug
Specifications Time Operation
Signal On Start
Specifications Type
Analog
Specifications Weight
0.56 lb
Specifications Width
38 mm
