Autonics Small Analog Timer - Multi-Mode, 100-240V AC, -10 to 55°C Environment, 11-Pin Plug
Autonics Small Analog Timer - Multi-Mode, 100-240V AC, -10 to 55°C Environment, 11-Pin Plug
SKU:PRO-642da7
Precise 6-Mode Small Analog Timer with 100-240V AC, -10 to 55°C Environment, CE & cULus Approved
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Initiate Order
Autonics Small Analog Timer - Multi-Mode, 100-240V AC, -10 to 55°C Environment, 11-Pin Plug
$29.95
Quantity: 1
Claim Your Seller Account
Autonics Small Analog Timer - Multi-Mode, 100-240V AC, -10 to 55°C Environment, 11-Pin Plug
$29.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

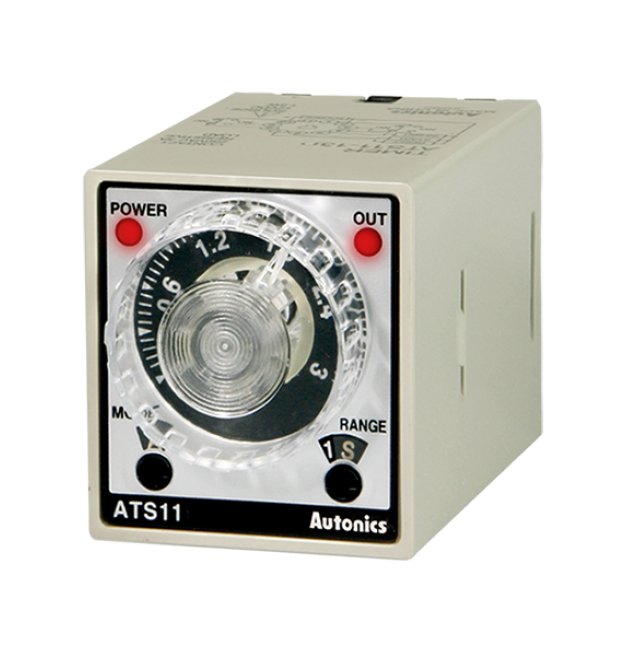

The Autonics Small Analog Timer is a versatile time controller designed for precise time-setting operations in various environments. With 6 operation modes and multi-range capabilities from 0.3 seconds to 30 hours, this timer offers flexibility and reliability. It supports alternating current (AC) voltage of 100-240V and direct current (DC) voltage of 24-240V, meeting a wide range of power requirements. Additionally, it features multiple output operations such as flicker, interval, signal off delay, and more, making it ideal for applications requiring signal control. Approved by European Conformity (CE) and cULus Listed, this timer ensures high-quality performance and adherence to international standards.
Product Specifications
Accessories Accessories
Bracket
Function Function
Signal on Start
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
70 g
Specifications Approximate Weight
95 g
Specifications Contact Type
Time Limit Double Pole Double Throw (DPDT)(2C)
Specifications Control Output
Time-Limit Single Pole Double Throw (SPDT) (1C): 2
Specifications Control Time Setting Range
0.3 Second to 30 Hour
Specifications Direct Current Dc Voltage
24 to 240 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
42 mm
Specifications List Price
29.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Signal Off Delay | Signal On Delay | Signal On-Off Delay
Specifications Setting Range
0.3 to 3 Hour | 0.3 to 3 Minute | 0.3 to 3 Second | 3 to 30 Hour | 3 to 30 Minute | 3 to 30 Second
Specifications Signal Input Method
No-Voltage Input (Negative Positive Negative (NPN))
Specifications Terminal
11-Pin Plug
Specifications Time Operation
Signal On Start
Specifications Type
Analog
Specifications Weight
0.56 lb
Specifications Width
38 mm
