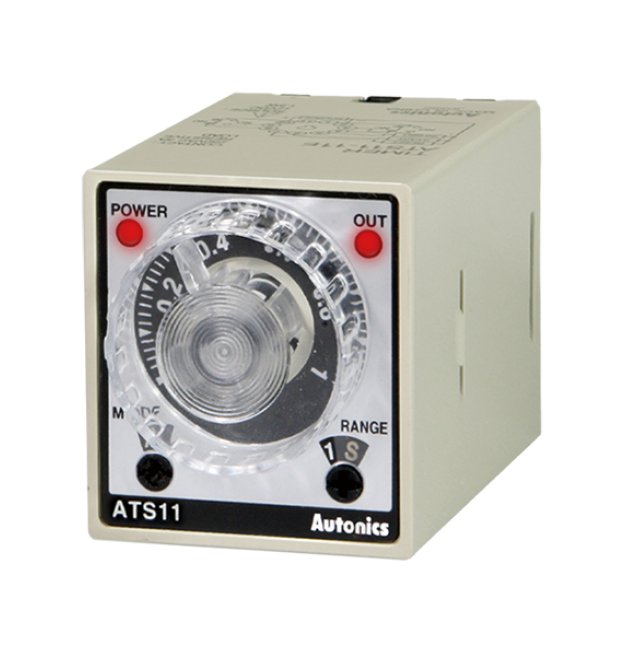

Autonics Small Analog Timer - Multi-Range 6-Mode Controller
Autonics Small Analog Timer - Multi-Range 6-Mode Controller
SKU:PRO-a8ae14
Versatile Autonics Small Analog Timer with 6 modes, 100-240VAC, 2 SPDT outputs. CE & cULus approved, ideal for precise time-based control.
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Initiate Order
Autonics Small Analog Timer - Multi-Range 6-Mode Controller
$29.95
Quantity: 1
Claim Your Seller Account
Autonics Small Analog Timer - Multi-Range 6-Mode Controller
$29.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics Small Analog Timer is a versatile 6-mode controller suitable for a wide range of applications. With multi-range settings from 0.1 second to 10 hours, 2 SPDT outputs, and operation voltages of 100-240VAC/24-240VDC, this timer provides precise and reliable time-based control. It features approval from CE and cULus, ensuring compliance with European and North American safety standards. With a compact design, wide temperature operation (-10 to 55°C), and a signal on start function, this timer is an ideal choice for both consumer and institutional buyers.
Product Specifications
Accessories Accessories
Bracket
Function Function
Signal on Start
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
70 g
Specifications Approximate Weight
95 g
Specifications Contact Type
Instantaneous Single Pole Double Throw (SPDT) (1C) | Time Limit Single Pole Double Throw (SPDT) (1C)
Specifications Control Output
Instantaneous Single Pole Double Throw (SPDT) (1C): 1 | Time-Limit Single Pole Double Throw (SPDT) (1C): 1
Specifications Control Time Setting Range
0.1 Second to 10 Hour
Specifications Direct Current Dc Voltage
24 to 240 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
42 mm
Specifications List Price
29.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Signal Off Delay | Signal On Delay | Signal On-Off Delay
Specifications Setting Range
0.1 to 1 Hour | 0.1 to 1 Minute | 0.1 to 1 Second | 1 to 10 Hour | 1 to 10 Minute | 1 to 10 Second
Specifications Signal Input Method
No-Voltage Input (Negative Positive Negative (NPN))
Specifications Terminal
11-Pin Plug
Specifications Time Operation
Signal On Start
Specifications Type
Analog
Specifications Weight
0.56 lb
Specifications Width
38 mm
