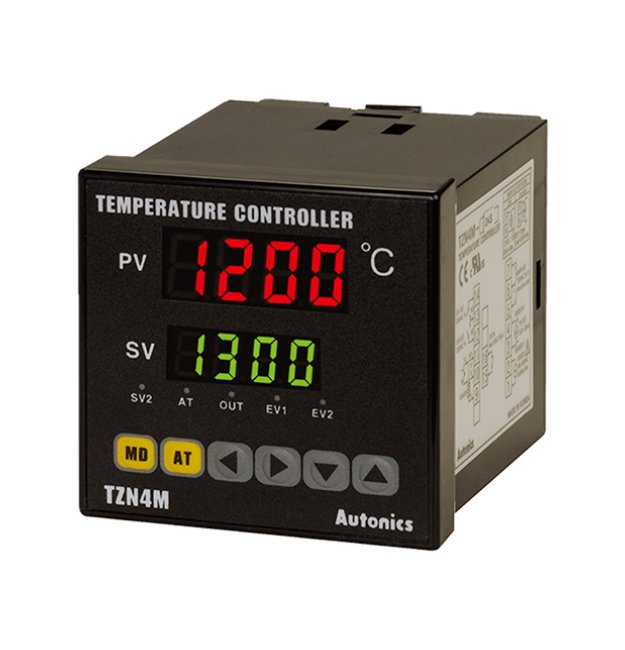

Autonics USA 100-240V AC Digital PID Temperature Controller
Autonics USA 100-240V AC Digital PID Temperature Controller
SKU:PRO-3df1f9
Achieve precise and reliable temperature control with Autonics USA 100-240V AC Digital PID Temperature Controller. UL and CE approved.
Regular price
$161.95
Regular price
Sale price
$161.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Digital PID Temperature Controller
$161.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Digital PID Temperature Controller
$161.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Digital PID Temperature Controller offers precise temperature control with a variety of control methods including On/Off, PID, and more. With approval from UL, CE, and accurate display accuracy of F.S ± 0.3%, this controller ensures reliability and compliance. Ideal for various thermocouple and RTD inputs, it features a 4-digit LED display, alarm output, and adjustable hysteresis. Additionally, its compact dimensions of 72 x 72 mm make it suitable for diverse applications in both institutional and industrial settings.
Product Specifications
Specifications Alarm Output
Alarm1
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
Relay Contact Output
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
72 x 72 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Height
72 mm
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
161.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
246 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
355 g
Specifications Weight
0.73 lb
Specifications Width
72 mm
