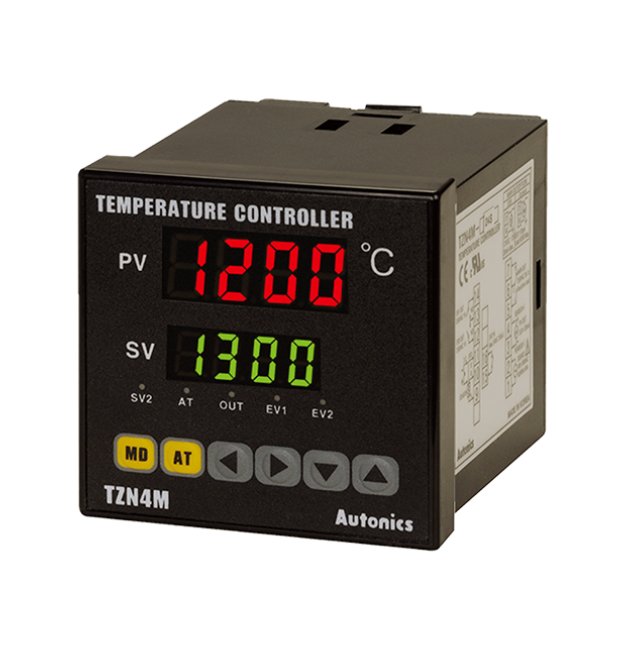

Autonics USA 100-240V AC Digital Temperature Controller
Autonics USA 100-240V AC Digital Temperature Controller
SKU:PRO-43c20a
Autonics USA 100-240V AC Digital Temperature Controller with PID control, SSR Output, Dual Alarms, and UL/CE Approval.
Regular price
$170.95
Regular price
Sale price
$170.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Digital Temperature Controller
$170.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Digital Temperature Controller
$170.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Digital Temperature Controller is a top-of-the-line PID controller designed to maintain precise temperature control. With dimensions of 72x72mm, this controller offers a wide range of control methods including On/Off, P, PD, PI, PIDF, and PIDS. It features SSR voltage output, dual alarm outputs, and supports various thermocouple and RTD inputs. Approved by UL, CE, this controller ensures accuracy with a 4-digit LED display and F.S ± 0.3% accuracy. With versatile settings like Proportional Band, Integral Time Range, and Ramp Settings, this controller is ideal for a wide range of applications.
Product Specifications
Specifications Alarm Output
Alarm1+Alarm2
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
SSR voltage output
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
72 x 72 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Height
72 mm
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
170.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1/2
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
246 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
355 g
Specifications Weight
0.73 lb
Specifications Width
72 mm
