Autonics USA 100-240V AC PID Digital Temperature Controller
Autonics USA 100-240V AC PID Digital Temperature Controller
SKU:PRO-1ff5f1
Versatile Autonics USA 100-240V AC PID Digital Temperature Controller with precise control methods and alarm outputs.
Regular price
$182.95
Regular price
Sale price
$182.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC PID Digital Temperature Controller
$182.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC PID Digital Temperature Controller
$182.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

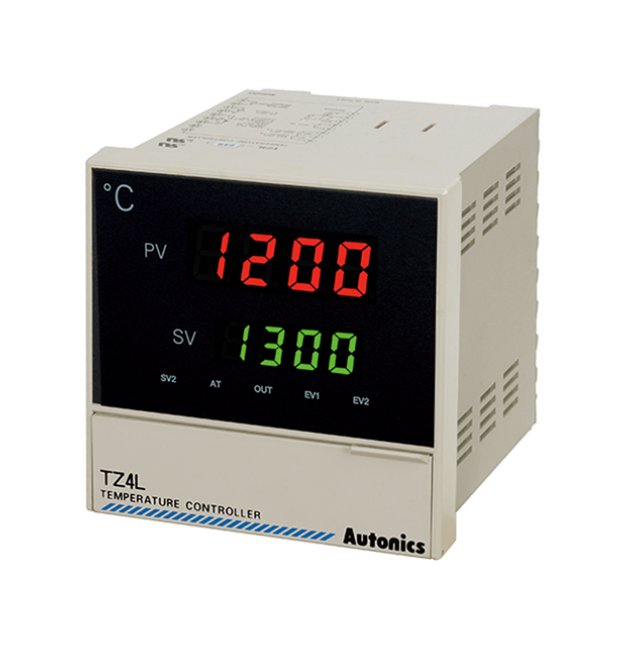

The Autonics USA 100-240V AC PID Digital Temperature Controller is a high-precision 1/4 DIN device that offers versatile control methods including On/Off, P, PD, PI, PIDF, and PIDS. With relay output and dual alarm outputs, this controller ensures precise temperature regulation. Meeting Canadian, US, and European standards by Underwriters' Laboratories and CE, it operates effectively in ambient temperatures from -10 to 50 ºC. Featuring a 4-digit LED display, multiple thermocouple and RTD input specifications, and various control settings, this controller is ideal for applications requiring advanced temperature management.
Product Specifications
Specifications Alarm Output
Alarm1+Alarm2
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
Relay Contact Output
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
96 x 96 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
182.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1/2
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
304 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
474 g
Specifications Weight
0.95 lb
