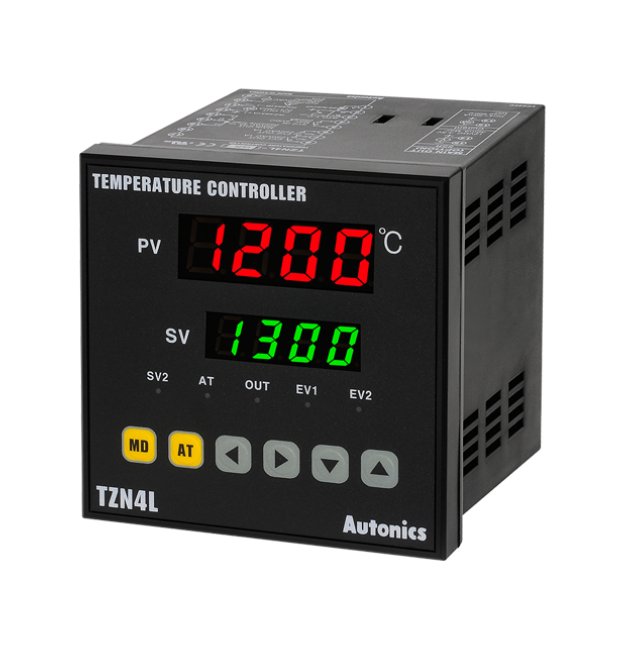

Autonics USA 100-240V AC PID Temperature Controller
Autonics USA 100-240V AC PID Temperature Controller
SKU:PRO-e7ef89
Precise Dual PID Temperature Controller with LED Display, Alarm Output, and RS485 Communication. UL/CE Certified.
Regular price
$188.95
Regular price
Sale price
$188.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC PID Temperature Controller
$188.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC PID Temperature Controller
$188.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Dual PID Temperature Controller is a high-precision digital controller suitable for a wide range of applications. With multiple control methods including On/Off, P, PD, PI, and PID, this controller offers precise temperature regulation. It features a 4-digit LED display for easy monitoring, along with alarm output and RS485 communication. Meeting Canadian and US UL, CE standards, this controller ensures reliable performance in diverse environments.
Product Specifications
Specifications Alarm Output
Alarm1+RS485 comm
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Current Output (DC 4 to 20mA)
Specifications Control Period
0.5 to 120.0 s
Specifications Derivative Time
0 to 9999 s
Specifications Dimensions
96 x 96 mm
Specifications Display Accuracy Resistance Temperature Detector
At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digitOut of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Specifications Display Accuracy Thermocouple
At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digitOut of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC/ºF (0.1 to 50.0ºC/ºF) Variable
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: AC Power 2kV, AC/DC Power 1kV)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
188.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Note
In case of the AC voltage model, SSR drive output method (standard ON/OFF control, cycle, control, phase control) is available to select.Display accuracy: Thermocouple L(IC) type, RTD Cu50At room temperature (23 ±5): (PV ±0.5% or ±2, select the higher one) ±1-digitOut of room temperature range: (PV ±0.5% or ±3, select the higher one) ±1digitIn case of TC4SP Series, ±1 will be added.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Alarm 1
Specifications Proportional Band
0.1 to 999.9ºC/ºF
Specifications Resistance Temperature Detector Rtd Input Specifi
Cu50Ω | DPt100Ω
Specifications Sampling Cycle
100 ms
Specifications Shipping Weight
122 g
Specifications Size
DIN W96ÃH48mm
Specifications Thermocouple Input Specification
J(IC) | K(CA) | L(IC)
Specifications Type
Dual PID
Specifications Unit Weight
194 g
Specifications Weight
0.97 lb
