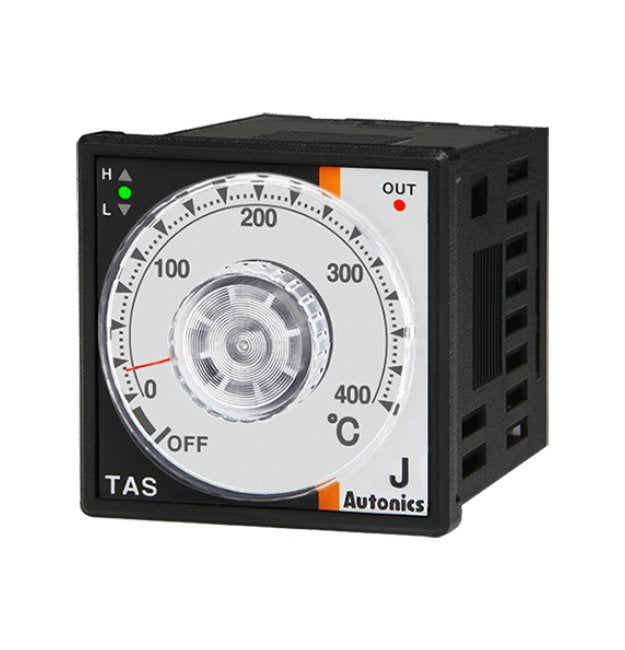

Autonics USA 100-240V AC PID Temperature Controller
Autonics USA 100-240V AC PID Temperature Controller
SKU:PRO-ac5f92
Efficient 100-240V AC PID temperature controller with SSR output & J thermocouple for precise 0-400°C control.
Regular price
$51.95
Regular price
Sale price
$51.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC PID Temperature Controller
$51.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC PID Temperature Controller
$51.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100 to 240 Volt Alternating Current (AC) Voltage Temperature Controller is a highly efficient 1/16 DIN controller featuring analog, PID control, and SSR output. With a J thermocouple and a temperature range of 0 to 400°C, it offers precise temperature control. This controller, compliant with Canadian, US, CE standards, operates on 100-240 VAC and supports On/Off and PID control combined. The 8-pin plug design of dimensions 48 x 48 mm ensures easy installation and reliability in demanding environments.
Product Specifications
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off and PID Control combined
Specifications Control Output
SSR voltage output
Specifications Dimensions
48 x 48 mm (8 pin plug type)
Specifications Display Method
Non-display
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 2kV)
Specifications List Price
51.95 USD
Specifications Note
8-pin socket (PG-08, PS-08(N)) is sold separately.Setting accuracy: Below 100 ? model is F.S. ±3%Below 100? model is F.S. ±4%, Over 100? model is F.S. ±3%The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Sampling Cycle
100 ms
Specifications Sensor Input Type
T.C: J(IC)
Specifications Setting Accuracy
F.S. ±2%(Room Temperature 23â±5â)
Specifications Setting Range
0 to 400 ºC
Specifications Setting Type
Dial Setting
Specifications Shipping Weight
69 g
Specifications Size
DIN W48ÃH48mm
Specifications Temperature Range
0 to 400 ºC
Specifications Temperature Unit
ºC
Specifications Thermocouple Input Specification
J(IC)
Specifications Type
Analog
Specifications Unit
C
Specifications Unit Weight
107 g
Specifications Weight
0.37 lb
