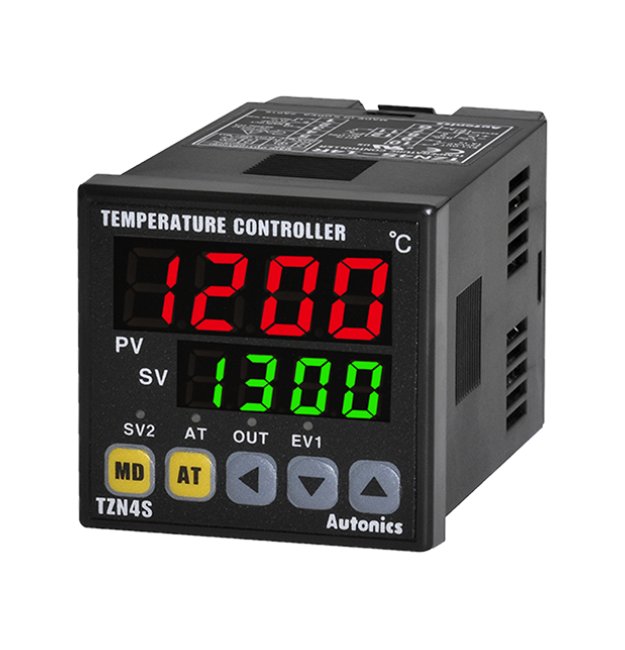

Autonics USA 100-240V AC Temp Controller - PID Digital 1/16 DIN SSR 1 Alarm Out
Autonics USA 100-240V AC Temp Controller - PID Digital 1/16 DIN SSR 1 Alarm Out
SKU:PRO-34cec9
Precise Autonics USA 100-240V AC Voltage Temp Controller with PID Control, Multiple Inputs, Alarm Out
Regular price
$137.95
Regular price
Sale price
$137.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Temp Controller - PID Digital 1/16 DIN SSR 1 Alarm Out
$137.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Temp Controller - PID Digital 1/16 DIN SSR 1 Alarm Out
$137.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Voltage Temperature Controller is a versatile solution for precise temperature control in industrial settings. With PID control algorithms and multiple control methods including On/Off, P, PI, PD, PIDF, and PIDS, this controller offers exceptional flexibility. It supports a wide range of inputs including various thermocouples, RTDs, and analog signals. Meeting Canadian, US, and European standards, this controller ensures safety and reliability. The 4-Digit LED display, alarm output, and programmable settings enhance usability, making it ideal for demanding environments.
Product Specifications
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control, P, PI, PD, PIDF, PIDS Control
Specifications Control Output
SSR Drive(12 VDC) [ON/OFF]
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
137.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
164 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Unit Weight
226 g
Specifications Weight
0.2 lb
