Autonics USA 100-240V AC Temperature Controller
Autonics USA 100-240V AC Temperature Controller
SKU:PRO-0ef875
Precision PID temperature control with versatile methods & relay output. Approved by UL, CE & versatile input specifications.
Regular price
$167.95
Regular price
Sale price
$167.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Temperature Controller
$167.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Temperature Controller
$167.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

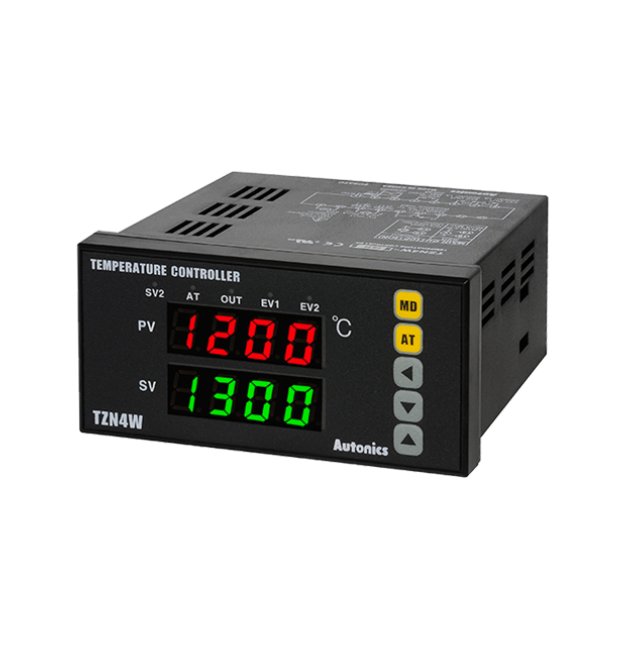

The Autonics USA 100-240V AC Temperature Controller is a reliable PID control solution providing precise temperature management. With dimensions of 96x48mm, this digital controller offers versatile control methods including On/Off Control, PID, and more. The relay output and alarm output ensure efficient temperature regulation. Approved by UL, CE, and compliant with various input specifications, this controller is ideal for diverse industrial applications.
Product Specifications
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control, P, PI, PD, PIDF, PIDS Control
Specifications Control Output
Relay (250 VAC to 3A)
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
48 mm
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
167.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
232 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Unit Weight
351 g
Specifications Weight
0.2 lb
Specifications Width
96 mm
