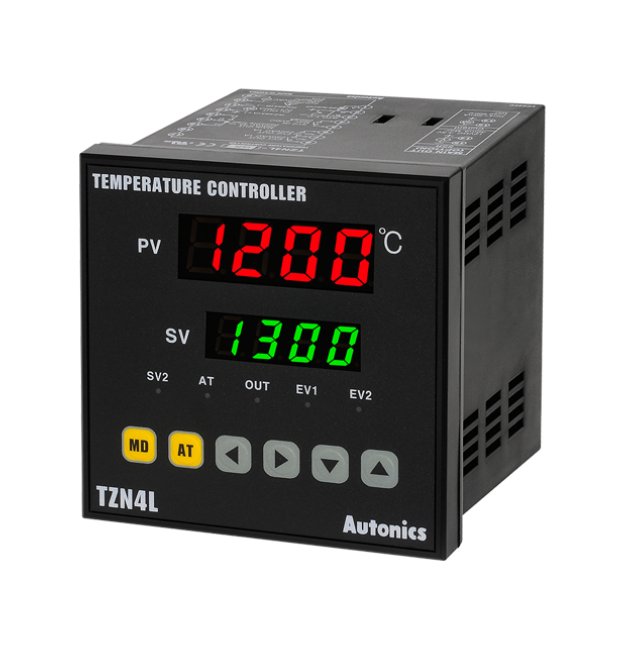

Autonics USA 100-240V AC Temperature Controller
Autonics USA 100-240V AC Temperature Controller
SKU:PRO-0eb913
High-precision PID digital temperature controller with 100-240V AC, 4-Digit LED display, and multiple control methods for industrial applications.
Regular price
$188.95
Regular price
Sale price
$188.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Temperature Controller
$188.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Temperature Controller
$188.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Temperature Controller is a high-precision, digital controller suitable for a variety of industrial applications. Featuring PID control methods including On/Off, P, PD, PI, PIDF, and PIDS, this controller offers precise temperature regulation with a sampling cycle of 500ms. With approvals from Canadian and US Standards (CURUS), European Conformity (CE), this controller ensures compliance and safety. The 4-Digit LED display, multiple input specifications, dual PID type, and flexible alarm settings make it ideal for environments with temperature sensitivity requirements.
Product Specifications
Specifications Alarm Output
Alarm1+Alarm2+PV transmission
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
Relay Contact Output
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
96 x 96 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
188.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1/2, PV transmission (DC4-20mA)
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
303 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
474 g
Specifications Weight
0.97 lb
