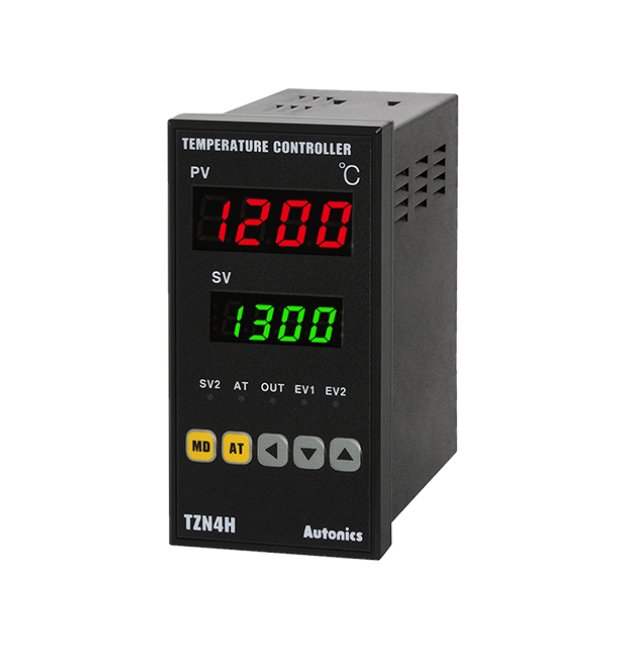

Autonics USA 100-240V AC Temperature Controller
Autonics USA 100-240V AC Temperature Controller
SKU:PRO-56ff6e
Achieve precise temperature control with the Autonics USA 100-240V AC Dual PID Temperature Controller. UL and CE approved.
Regular price
$173.95
Regular price
Sale price
$173.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Temperature Controller
$173.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Temperature Controller
$173.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Temperature Controller offers precise PID temperature control with versatile control methods including On/Off, P, PD, PI, PIDF, and PIDS control. With dimensions of 48x96mm, this digital controller features a 4-Digit 7-Segment LED display for clear visibility. It supports various input specifications such as thermocouples, RTDs, and analog inputs, ensuring compatibility with different temperature sensing elements. Approved by UL, CE, this controller meets rigorous environmental standards and boasts dual PID functionality for enhanced temperature regulation.
Product Specifications
Specifications Alarm Output
Alarm1+Alarm2
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
Current Output (DC 4 to 20mA)
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3,600 s
Specifications Dimensions
48 x 96 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
96 mm
Specifications Integral Time Range
0 to 3,600 s
Specifications Lba Setting
1 to 999
Specifications List Price
173.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1/2
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
232 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
351 g
Specifications Weight
0.75 lb
Specifications Width
48 mm
