Autonics USA 100-240V AC Temperature Controller
Autonics USA 100-240V AC Temperature Controller
SKU:PRO-32acba
Precise 1/16 DIN temperature controller with relay output, approved by CURUS and CE standards for industrial applications.
Regular price
$51.95
Regular price
Sale price
$51.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Temperature Controller
$51.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Temperature Controller
$51.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

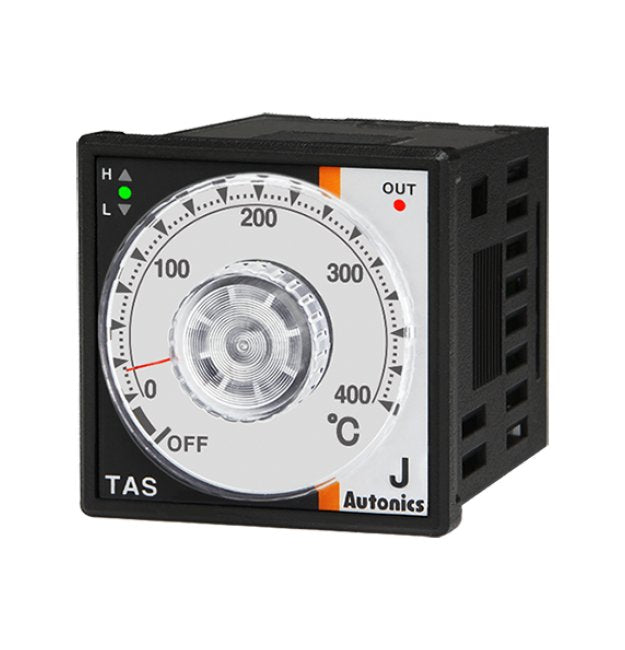

The Autonics USA 100-240V AC Temperature Controller is a high-quality 1/16 DIN device designed to provide precise temperature control for a wide range of applications. With both On/Off and PID control methods, this controller offers versatility and accuracy. It features a relay output, J thermocouple input, and a temperature range of 0 to 400°C. Approved by Canadian and US Standards (CURUS) and European Conformity (CE), this controller is reliable and compliant with industry regulations. The double insulation design ensures safety and durability, making it ideal for industrial and institutional settings.
Product Specifications
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off | PID Control Combined
Specifications Control Output
Relay Contact Output
Specifications Dimensions
48 x 48 mm (8 pin plug type)
Specifications Display Method
Non-display
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: AC Power 2kV, AC/DC Power 1kV)
Specifications List Price
51.95 USD
Specifications Note
8-pin socket (PG-08, PS-08(N)) is sold separately.Setting accuracy: Below 100 model is F.S. ±3%Below 100 model is F.S. ±4%, Over 100 model is F.S. ±3%The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Sampling Cycle
100 ms
Specifications Sensor Input Type
T.C: J(IC)
Specifications Setting Accuracy
F.S. ±2%(Room Temperature 23â±5â)
Specifications Setting Range
0 to 400 ºC
Specifications Setting Type
Dial Setting
Specifications Shipping Weight
69 g
Specifications Size
DIN W48ÃH48mm
Specifications Temperature Range
0 to 400 ºC
Specifications Temperature Unit
ºC
Specifications Thermocouple Input Specification
J(IC)
Specifications Type
Analog
Specifications Unit
C
Specifications Unit Weight
107 g
Specifications Weight
0.37 lb
