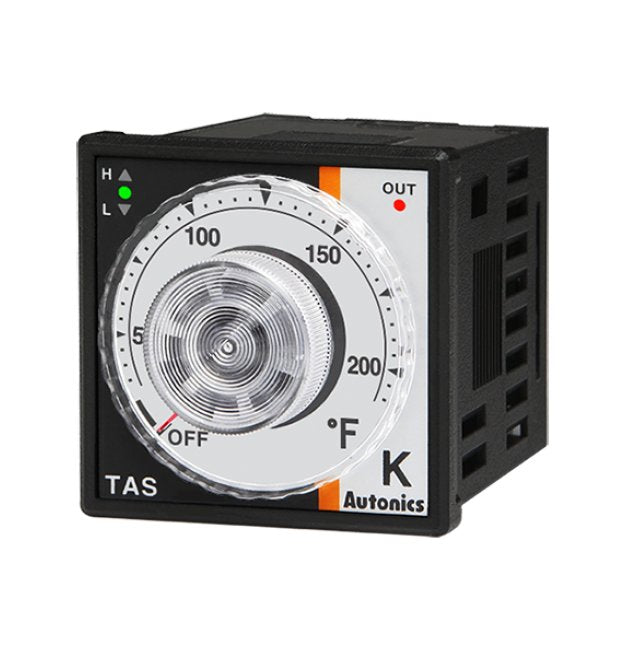

Autonics USA 100-240V AC Temperature Controller
Autonics USA 100-240V AC Temperature Controller
SKU:PRO-b8db31
Achieve precise temperature control with the Autonics USA 100-240V AC Temperature Controller featuring Relay Output & PID Control. UL and CE approved.
Regular price
$51.95
Regular price
Sale price
$51.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Temperature Controller
$51.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Temperature Controller
$51.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance temperature control precision with the Autonics USA 100-240V AC Temperature Controller. Boasting a compact 1/16 DIN size and K thermocouple input, this device offers versatile control methods including On/Off and PID Control Combined. Approved by UL, CE, and designed for environmental adaptability, it ensures reliable operation in diverse settings. The Relay Output and analog display make monitoring and adjusting temperatures effortless. Meet stringent procurement standards with this reliable temperature controller.
Product Specifications
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off | PID Control Combined
Specifications Control Output
Relay Contact Output
Specifications Dimensions
48 x 48 mm (8 pin plug type)
Specifications Display Method
Non-display
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: AC Power 2kV, AC/DC Power 1kV)
Specifications List Price
51.95 USD
Specifications Note
8-pin socket (PG-08, PS-08(N)) is sold separately.Setting accuracy: Below 100 model is F.S. ±3%Below 100 model is F.S. ±4%, Over 100 model is F.S. ±3%The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Sampling Cycle
100 ms
Specifications Sensor Input Type
T.C: K(CA)
Specifications Setting Accuracy
F.S. ±2%(Room Temperature 23â±5â)
Specifications Setting Range
32 to 212 ºF
Specifications Setting Type
Dial Setting
Specifications Shipping Weight
69 g
Specifications Size
DIN W48ÃH48mm
Specifications Temperature Range
32 to 212 ºF
Specifications Temperature Unit
ºF
Specifications Thermocouple Input Specification
K(CA)
Specifications Type
Analog
Specifications Unit
F
Specifications Unit Weight
107 g
Specifications Weight
0.37 lb
