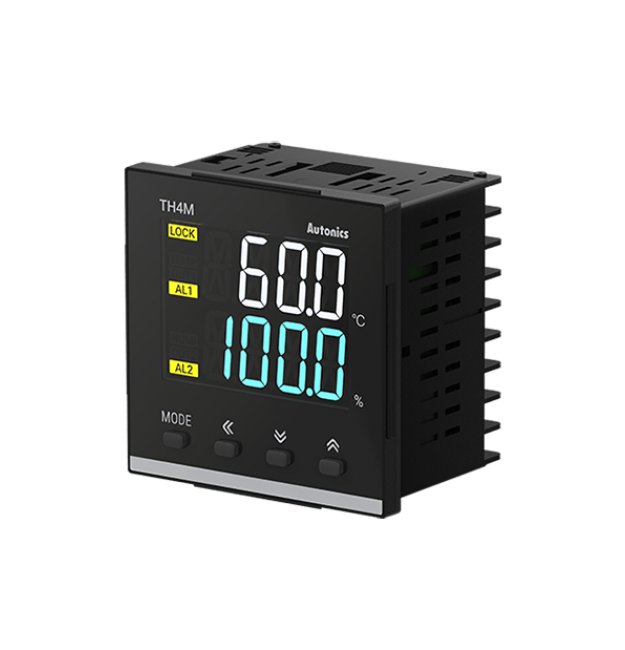

Autonics USA 100-240V AC Temperature Controller
Autonics USA 100-240V AC Temperature Controller
SKU:PRO-a88380
Precise temperature and humidity control with Autonics 100-240V AC Controller. CE approved, dual relay outputs, -20 to 60°C range.
Regular price
$282.95
Regular price
Sale price
$282.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Temperature Controller
$282.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Temperature Controller
$282.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Temperature Controller is a reliable and efficient solution for precise temperature and humidity control. With On/Off control method, European Conformity (CE) approval, and a display accuracy of ±1.0°C, this controller ensures accuracy and compliance with industry standards. Its double insulation and relay outputs for temperature and humidity offer secure operation. Suitable for environments with temperatures ranging from -20 to 60°C and relative humidity of 10% to 100%, this controller is ideal for various applications requiring a control range of -20.0 to 60.0°C.
Product Specifications
Specifications Alarm Output Relay
AL1/2: 250 VAC to 3 A, 1a
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE)
Specifications Body Weight
144 g
Specifications Control Method
On/Off Control
Specifications Control Output Relative Humidity Rh Out2
Relay: 250 VAC to 3 A
Specifications Control Output Temperature Out1
Relay: 250 VAC - 3 A
Specifications Display Accuracy Humidity
At Room Temperature (25 â ±5 â): ⤠±3.0%RH (20 to 90%RH )
Specifications Display Accuracy Temperature
At Room temperature (25 â ±5 â): ⤠±1.0 â Out of room temperature range: ⤠±2.0 â<.li>
Specifications Display Method
11-Segment (Temperature: White, Humidity: Blue), Other Display (Yellow) Liquid-crystal Display (LCD) Type
Specifications Display Range Temperature
-20.0 to 60.0 ºC
Specifications Display Relative Humidity Rh Range
10.0 to 100.0
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Insulation Type
Double Insulation (Dielectric Strength Between Primary Circuit and Secondary Circuit: 3kV)
Specifications List Price
282.95 USD
Specifications Power Consumption
8
Specifications Sampling Cycle
1 s
Specifications Using Relative Humidity Rh Range
10.0 to 100.0 %
Specifications Using Temperature Range
-20.0 to 60.0 ºC
