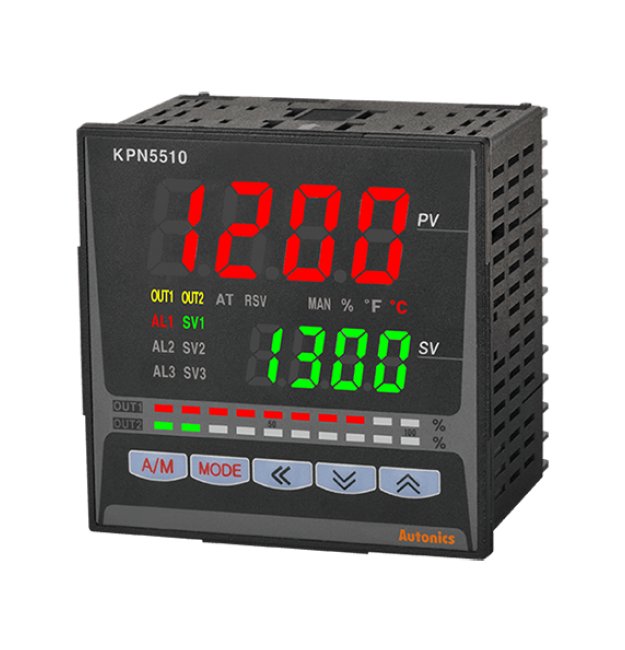

Autonics USA 100-240V AC Temperature Controller
Autonics USA 100-240V AC Temperature Controller
SKU:PRO-7e3616
Versatile Autonics USA 100-240V AC Temperature Controller for precise industrial temperature management.
Regular price
$345.95
Regular price
Sale price
$345.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Temperature Controller
$345.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Temperature Controller
$345.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Temperature Controller is a high-performance device designed for precise temperature control in industrial settings. With a wide input range of 100 to 240 volts AC, this controller offers versatile compatibility. It features multiple input types for Resistance Temperature Detectors (RTD), Thermocouples (TC), Analog Voltage, and Analog Current, ensuring flexibility in various application scenarios. The control methods include On/Off Control, Proportional (P), Derivative (D), Integral (I), and PID Control, allowing for tailored temperature regulation. This controller is IP65 rated for protection and CE approved for quality assurance.
Product Specifications
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
OUT1: Selectable Current Output, SSR drive Output, OUT2: Selectable Current Output, SSR Drive Output
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
96 mm
Specifications Inputoutput Option
None
Specifications Input Type Analog Current
0 to 20 mA | 4 to 20 mA
Specifications Input Type Analog Voltage
0 to 10 V | 0 to 100 mV | 0 to 5 V | 1 to 5 V
Specifications Input Type Resistance Temperature Detector Rtd
Cu100Ω | Cu50Ω | DPt100Ω | DPt50Ω | JPt100Ω | Nikel120Ω (6 types)
Specifications Input Type Tc
B | C | E | G | J | K | L | N | PLII (13 types) | R | S | T | U
Specifications List Price
345.95 USD
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel)
Specifications Sampling Cycle
50 ms
Specifications Shipping Weight
220 g
Specifications Size
DIN W96ÃH96mm
Specifications The Number Of Control Output
3 Output Type (Heating and Cooling Type)
Specifications Unit Weight
316 g
Specifications Weight
0.2 lb
Specifications Width
96 mm
