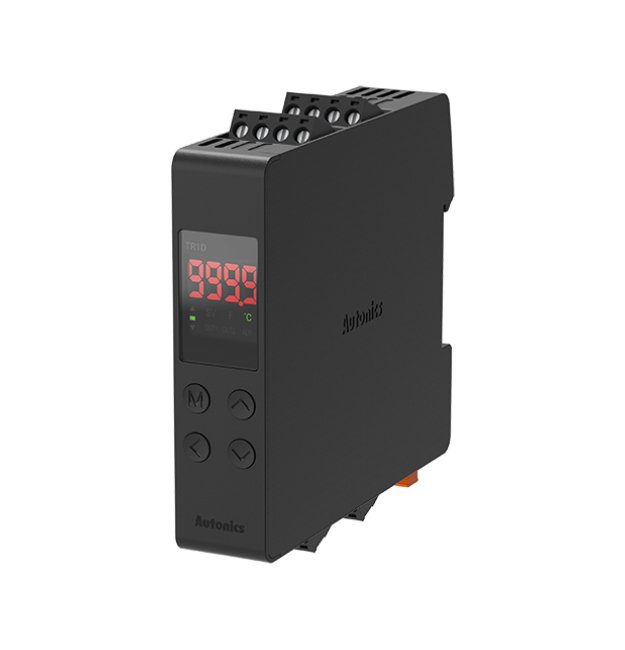

Autonics USA 100-240V AC Temperature Controller
Autonics USA 100-240V AC Temperature Controller
SKU:PRO-60ca22
Accurate, versatile 100-240V AC Temperature Controller w/ alarm output & European Conformity. Ideal for precision temperature regulation.
Regular price
$141.95
Regular price
Sale price
$141.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Temperature Controller
$141.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Temperature Controller
$141.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Voltage Temperature Controller is a high-quality single display modular controller suitable for both consumer and institutional buyers. With versatile control methods including On/Off, P, PD, PI, and PID, this controller offers precise temperature regulation for a wide range of applications. It features a 4-Digit 7-Segment display, multiple input specifications for thermocouples and RTDs, alarm outputs, and a robust construction that meets European Conformity (CE) standards for quality and reliability. Additionally, it boasts excellent noise immunity, vibration resistance, and a long mechanical and electrical relay lifecycle, making it an ideal choice for demanding environments.
Product Specifications
Specifications Alarm Output Hysteresis
Alarm output: 1 to 100ºC/ºF (0.1 to 50.0ºC/ºF)
Specifications Allowable Rated Voltage Range
90 to 110 %
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Period
0.5 to 120.0 s
Specifications Ct Input Display Accuracy
±5% F.S. ±1-Digit
Specifications Ct Input Type
0.0 to 50.0A (Primary Current Measurement Range) CT Ratio=1/1000
Specifications Current Control Output
Selectable Direct Current (DC) 4 to 20mA or Direct Current (DC) 0 to 20mA (Load Resistance Maximum 500â¦)
Specifications Derivative Time
0 to 9999 s
Specifications Dielectric Strength
3000VAC 50/60Hz for 1 min (Between the Power Part and the Case)
Specifications Display Accuracy Resistance Temperature Detector
At room temperature (23ºC ±5ºC): (PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature ranges: (PV ±+H400.5% or ±2ºC, select the higher one) ±1-digit
Specifications Display Accuracy Thermocouple
At room temperature (23ºC ±5ºC): (PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature ranges: (PV ±+H400.5% or ±2ºC, select the higher one) ±1-digit
Specifications Display Method
4-Digit 7-Segment (Red)
Specifications Electrical Relay Life Cycle
OUT1/2, AL1/2: Minimum 100000 (Resistance Load: 250VAC, 5A)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Hysteresis Control Output
Control output: 1 to 100ºC/ºF (0.1 to 100.0ºC/ºF), Alarm output: 1 to 100ºC/ºF (0.1 to 50.0ºC/ºF)
Specifications Insulation Resistance
100M⦠or More (500VDC Megger Basis)
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between Measuring the Power Part and the Case : 3kV)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
141.95 USD
Specifications Maximum Ssr Control Direct Current Dc Voltage Out
12 V
Specifications Mechanical Relay Life Cycle
OUT1/2, AL1/2: Minimum 5000000 Operations
Specifications Memory Protection
Approximate 10 years (Non-volatile Semiconductor Memory Type)
Specifications Noise Immunity
Square Shaped Noise by Noise Simulator (Pulse Width 1µs) ±2kV R-phase, S-phase
Specifications Option Output Transmission
Direct Current (DC) 4 to 20mA (Load Resistance: Maximum 500Ω)
Specifications Power Consumption
8
Specifications Proportional Band
0.1 to 999.9ºC
Specifications Resistance Temperature Detector Rtd Input Specifi
Cu50Ω | DPt100Ω | Nickel120Ω (Permissible Line Resistance Maximum 5Ω)
Specifications Sampling Cycle
50 ms | 100 ms | 250 ms
Specifications Shipping Weight
123.5 g
Specifications Ssr Control Current Output
20 mA
Specifications Ssr Control Direct Current Dc Voltage Tolerance
±3 V
Specifications Thermocouple Input Specification
J(IC) | K(CA) | L(IC) | R(PR) | S(PR) | T(CC)
Specifications Unit Weight
194.5 g
