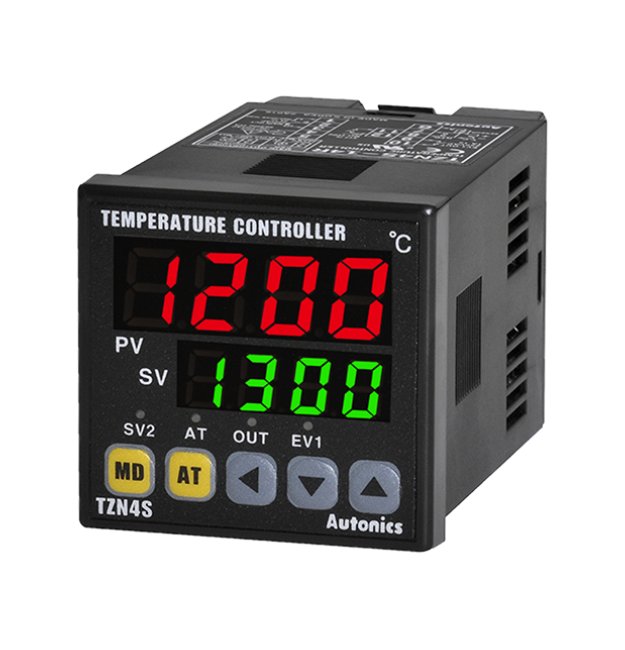

Autonics USA 100-240V AC Temperature Controller
Autonics USA 100-240V AC Temperature Controller
SKU:PRO-fb7d57
Enhance temperature control with the Autonics USA 100-240V AC Controller, featuring PID control, relay output, and UL/CE approval.
Regular price
$137.95
Regular price
Sale price
$137.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Temperature Controller
$137.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Temperature Controller
$137.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Temperature Controller offers precise PID temperature control with versatile control methods including On/Off, P, PI, PD, PIDF, and PIDS. It features a 4-Digit LED display, relay output, and alarm output. Approved by UL, CE, and compliant with environmental standards, this controller supports various input specifications for thermocouples, RTDs, and analog signals. With a wide temperature range, adjustable alarm hysteresis, and customizable settings, this controller ensures accurate and reliable temperature management in diverse applications.
Product Specifications
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control, P, PI, PD, PIDF, PIDS Control
Specifications Control Output
Relay (250 VAC to 3A)
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
137.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
164 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Unit Weight
226 g
Specifications Weight
0.2 lb
