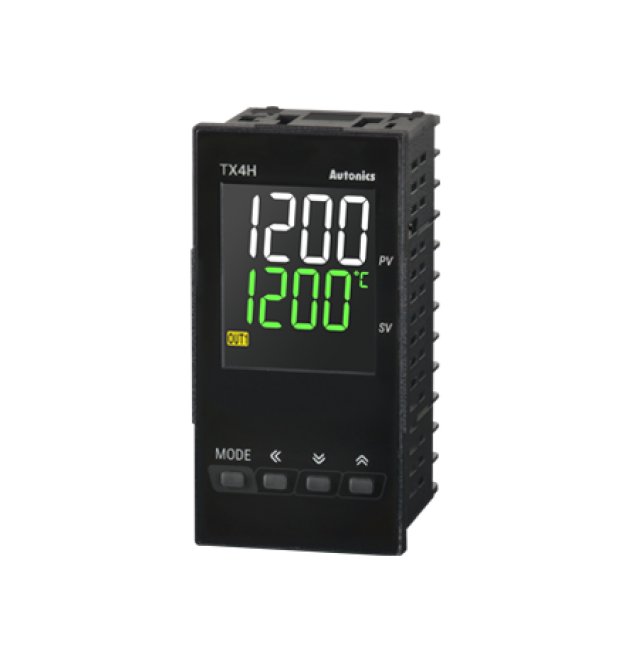

Autonics USA 100-240V AC Temperature Controller (PID Control)
Autonics USA 100-240V AC Temperature Controller (PID Control)
SKU:PRO-4798d0
Versatile Autonics USA 100-240V AC Temperature Controller with PID Control for precise temperature management.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Autonics USA 100-240V AC Temperature Controller (PID Control)
$149.99
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Temperature Controller (PID Control)
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Temperature Controller with PID Control is a versatile and precise solution for temperature management. With a wide voltage range, LCD display, and selectable output options, this controller offers advanced functionality to meet varied needs. It boasts fast sampling cycles, multiple control methods, and robust environmental specifications. Approved by UL, CE, and KC, this controller ensures safety and quality standards compliance, making it ideal for institutional buyers requiring top-tier performance.
Product Specifications
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE) | Korea Certification (KC)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Current (DC0/4 to 20mA) or SSR drive (13VDC)[ON/OFF]
Specifications Control Period
0.5 to 120.0 s
Specifications Derivative Time
0 to 9999 s
Specifications Display Accuracy Resistance Temperature Detector
At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit
Specifications Display Accuracy Thermocouple
At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit
Specifications Display Method
4-Digit 11-Segment Liquid Crystal Display (LCD)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
96 mm
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC/ºF(0.1 to 50.0ºC/ºF) variable
Specifications Insulation Type
Double Insulation (Dielectric Strength Between Primary Circuit and Secondary Circuit: 3kV)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
151.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Note
When using the unit at low temperature (below 0?), display cycle is slow. Control output operates normally.At room temperature(23?±5?)TC R(PR), S(PR) , below 200?: (PV ±0.5% or ±3?, select the higher one) ±1-digit, over 200?: (PV ±0.5% or ±2?, select the higher one) ±1-digitTC L(IC), RTD Cu50?: (PV ±0.5% or ±2?, select the higher one) ±1-digitOut of room temperature rangeTC R(PR), S(PR): (PV ±1.0% or ±5?, select the higher one) ±1-digitTC L(IC), RTD Cu50?: (PV ±0.5% or ±3?, select the higher one) ±1-digitThe weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Alarm 1/2
Specifications Proportional Band
0.1 to 999.9ºC/ºF
Specifications Protection Structure
Ingress Protection (IP) 50 (Front Panel)
Specifications Resistance Temperature Detector Rtd Input Specifi
Cu50Ω | DPt100Ω
Specifications Sampling Cycle
50 ms
Specifications Shipping Weight
133 g
Specifications Thermocouple Input Specification
J(IC) | K(CA) | L(IC) | R(PR) | S(PR) | T(CC)
Specifications Unit Weight
214 g
Specifications Weight
0.2 lb
Specifications Width
46 mm
